The ISO7762QDBQRQ1 devices are high-performance six-channel digital isolators that provide UL 1577-compliant isolation ratings of 5000VRMS (DW package) and 3000VRMS (DBQ package). The devices are also VDE, CSA, TUV, and CQC certified.

Product Attributes

Type: CAN

Isolated Power: None

Number of Channels: 6

Inputs - Side 1/Side 2: 4/2

Channel Type: Unidirectional

Voltage - Isolated: 3000Vrms

Common Mode Transient Immunity (min): 85kV/µs

Data Rate: 100Mbps

Propagation Delay tpLH / tpHL (Max): 16ns, 16ns

Pulse Width Distortion (max): 4.9ns

Rise/Fall Time (typical): 1.1ns, 1.4ns

Voltage - Supply: 2.25V ~ 5.5V

Grade: Automotive Grade

Qualification: AEC-Q100

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

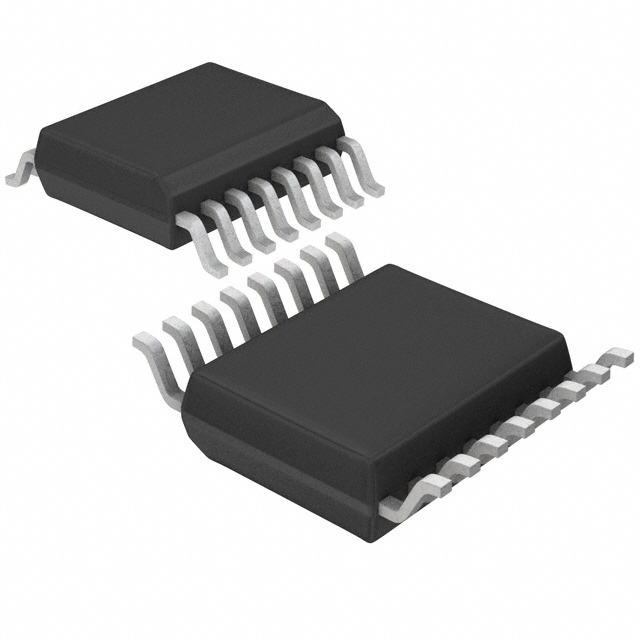

Package/Case: 16-SSOP (0.154", 3.90mm Width)

Supplier Device Package: 16-SSOP

Applications

- Hybrid, electric and powertrain systems (EV/HEV)

- Battery Management Systems (BMS)

- On-board chargers

- Traction inverters

- DC/DC converters

- Starters/Generators
