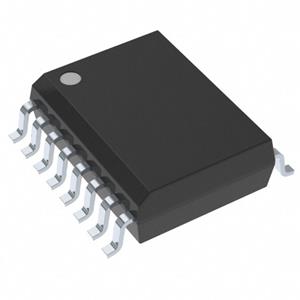

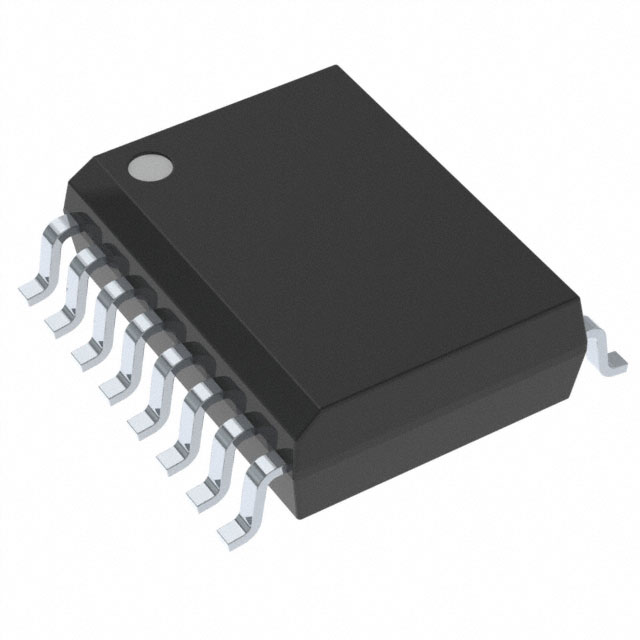

The ISO6731QDWRQ1 device is a high-performance three-channel digital isolator that provides a UL 1577-compliant 5000VRMS isolation rating, making it ideal for cost-sensitive applications with such requirements. The device is also VDE, TUV, CSA, and CQC certified.

While isolating complementary metal-oxide-semiconductor (CMOS) or low-voltage complementary metal-oxide-semiconductor (LVCMOS) digital I/Os, the ISO6731-Q1 devices provide high electromagnetic immunity and low radiation, as well as low power consumption. The logic input and output buffers of each isolated channel are isolated by TI's double-capacitance silicon dioxide (SiO2) barrier. The device is equipped with enable pins that can be used to place the respective outputs in a high-impedance state in multi-master drive applications. the ISO6731-Q1 device has two forward channels and one reverse channel. The ISO6731-Q1 device has two forward channels and one reverse channel. If there is a loss of input power or signal, the device without the F suffix defaults to a high output and the device with the F suffix defaults to a low output.

Used in conjunction with an isolated power supply, this device helps prevent noise currents on data buses such as CAN and LIN from damaging sensitive circuitry. With innovative chip design and layout techniques, the ISO6731-Q1 devices offer significantly enhanced EMC compatibility, mitigating system-level ESD, EFT, and surge issues, as well as compliance with radiation standards. The ISO6731-Q1 device is available in a 16-pin SOIC wide-body (DW) package and represents a pin-to-pin upgrade from previous generations.

Features

The following features are compliant with AEC-Q100:

Device temperature class 1: -40°C to +125°C ambient operating temperature range

Meets VDA320 isolation requirements

50Mbps data rate

Robust and reliable barrier:

Extremely long life at 1500 VRMS operating voltage

Isolation ratings up to 5000 VRMS

Surge capability up to 10kV

CMTI of ±75kV/µs typical

Wide supply voltage range: 1.71V to 1.89V and 2.25V to 5.5V

1.71V to 5.5V level switching

Default output high (ISO6731 -Q1) and low (ISO6731F -Q1) options

Typical 1.6mA per channel at 1Mbps

Low propagation delay: 11ns (typical)

Excellent electromagnetic compatibility (EMC)

System-level ESD, EFT and surge immunity

±8kV IEC 61000-4-2 contact discharge protection across the barrier

Low radiation

Wide-body SOIC (DW-16) package

Applications

- Hybrid, electric, and powertrain systems (EV/HEV)

- Battery Management Systems (BMS)

- In-vehicle chargers

- Traction inverters

- DC/DC converters

- Inverters and Motor Controls
