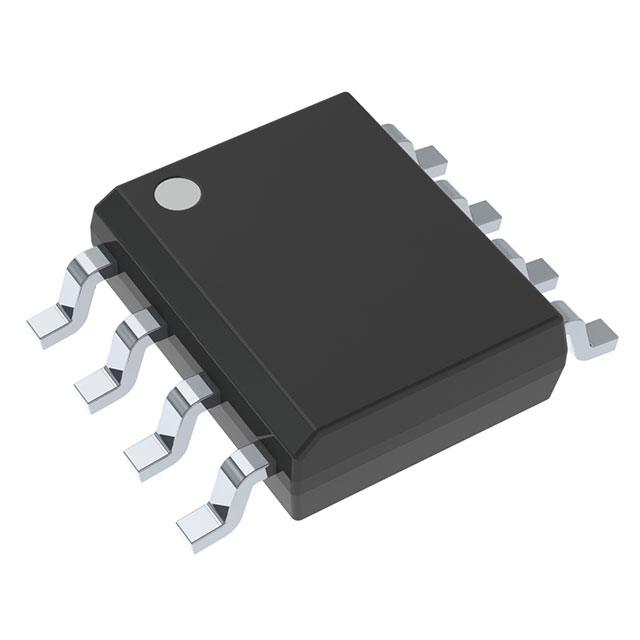

For picture reference, please see the specifications
< >

Commodity Model:ISO7710FQDRQ1

Trade Name:ISO7710FQDRQ1

Data Manual:ISO7710FQDRQ1.pdf

Brand:TI

Particular Year:23+

Package:SOIC-8

Delivery Date:New and Original

Stock: 8500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ISO7710FQDRQ1
Package
SOIC-8
Describe
Automotive Single-Channel, Enhanced Digital Isolator with Excellent EMC Performance

Product Description

The ISO7710FQDRQ1 device is a high-performance single-channel digital isolator that provides UL 1577-compliant isolation ratings of 5000VRMS (DW package) and 3000VRMS (D package). The device is also VDE, TUV, CSA, and CQC certified.


While isolating complementary metal-oxide-semiconductor (CMOS) or low-voltage complementary metal-oxide-semiconductor (LVCMOS) digital I/Os, the ISO7710-Q1 devices provide high electromagnetic immunity and low radiation with low power consumption. The isolated channel has logic input and output buffers, which are separated by a silicon dioxide (SiO2) barrier. If there is a loss of input power or signal, devices without the F suffix default to a high output, and devices with the F suffix default to a low output.


Features

Meets Automotive Application Requirements

The following results meet the AEC-Q100 standard:

Device Temperature Class 1: -40°C to +125°C ambient operating temperature range

Device HBM ESD Classification Level 3A

Device CDM ESD Classification Level C6

Signalling rate: up to 100Mbps

Wide supply voltage range: 2.25V to 5.5V

2.25V to 5.5V level switching

Default Output High and Low Level Options

Low power consumption.

1.7mA typical at 1Mbps

Low propagation delay: 11ns typical

(from 5V supply)

High CMTI: ±100kV/µs typical

Excellent electromagnetic compatibility (EMC)

System-level ESD, EFT and surge immunity

Low radiation

Barrier life: > 40 years

Wide-body small form factor integrated circuit (SOIC) (DW-16) and narrow-body small form factor integrated circuit (SOIC) (D-8) package options


Applications

- Hybrid electric vehicles

- Motor control

- Power supplies

- Photovoltaic inverters

Associated Products

Model

Brand

Package

Quantity

Describe

ISOW7842FDWER

TI

SOIC-16

2000

High-Performance 5000 VRMS Reinforced Quad-Channel Digital Isolators

SI8660BD-ASR

Skyworks

SOIC-16

15000

General Purpose Digital Isolator 5000 Vrms 6 Channels 150 Mbps 35 kV/µs CMTI 16-SOIC (0.295", 7.50 mm wide)

ISO7341FCDWR

TI

SOIC-16

12000

Low power consumption, four channels, 3/1, 25Mbps, default output low level digital isolator

SI8602AB-B-ISR

Skyworks

SOIC-8

5000

Bidirectional I2C Digital Isolator, SOIC-8

ADUM4151ARIZ

ADI

SOIC-20

2000

5 kV dedicated isolator for SPI interface (2/1 auxiliary channel directionality)

ISO7221CDR

TI

SOIC-8

12000

Dual-channel, 1/1, 25 Mbps digital isolator

ISO7220CDR

TI

SOIC-8

5000

Dual Channel, 2/0, 25Mbps Digital Isolator

ISO7221ADR

TI

SOIC-8

15000

Dual Channel, TTL, 1/1, 1Mbps Digital Isolator

ADUM3402ARWZ

ADI

SOIC-16

4000

Quad-channel digital isolator with enhanced system-level ESD reliability

4DIR2401H

INFINEON

PG-DSO-16

3000

Quad Digital Isolator, PG-DSO-16
