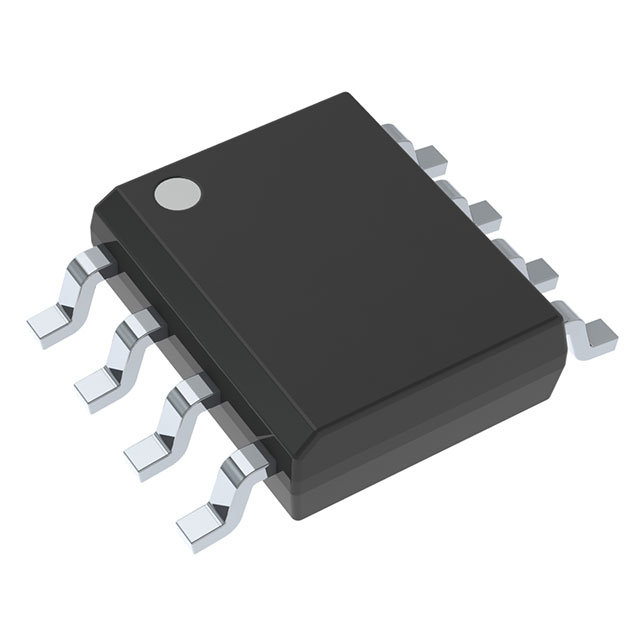

The ISO1540QDQ1 devices are low power bi-directional isolators compatible with the I2C interface. Used with Texas Instruments (TI) capacitive isolation technology, the logic input and output buffers of these devices are isolated by silicon dioxide (SiO2) insulated barriers. When used with an isolated power supply, these devices block high voltages, isolate ground, and prevent noise currents from entering the local ground that could interfere with or damage sensitive circuitry.

Features

- Compliant with automotive applications

- The following features meet the AEC-Q100 standard:

- Device Temperature Class 1: -40°C to +125°C operating ambient temperature range

- Device HBM ESD Classification 3A

- Device CDM ESD Classification Level C6

- Provides Functional Safety

- Documentation to aid in the design of functionally safe systems: ISO1540-Q1

- Isolated Bidirectional I2C-Compatible Communication

- Supports operating frequencies up to 1MHz

- 3V to 5.5V supply voltage range

- Open-drain output with 3.5mA of 1-side sink current and 35mA of 2-side sink current

- ±50kV/µs transient immunity (typical)

- Safety-related approvals:

- 4242VPK isolation in accordance with DIN EN IEC 60747-17 (VDE 0884-17)

- 2500VRMS isolation according to UL 1577 with 1 minute duration

- CSA certification according to IEC 62368-1 terminal equipment standard

- CQC basic insulation according to GB4943.1-2011 standard

Applications

- Electric and hybrid vehicles

- Isolated I2C bus

- SMBus and PMBus interfaces

- Open-drain networks

- Motor control systems

- Battery Management

- I2C Level Switching
