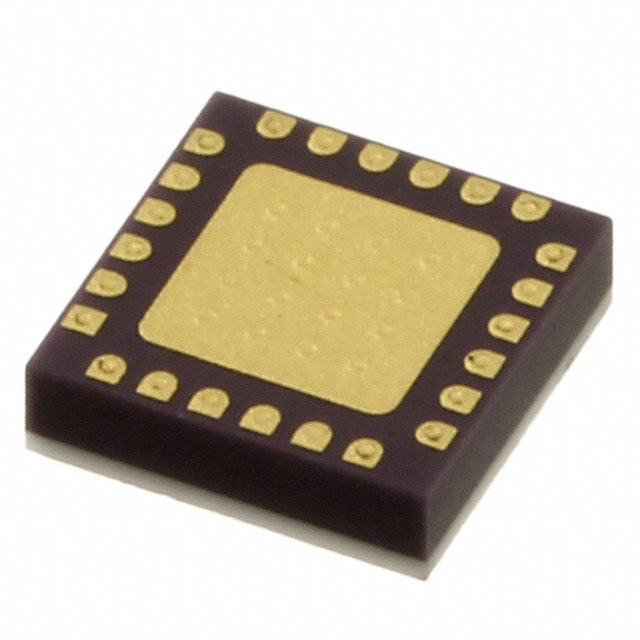

The HMC772LC4TR is a GaAs MMIC HEMT Low Noise Wideband Amplifier which operates between 2 and 12 GHz. The amplifier provides 15 dB of gain, 1.8 dB noise figure up to 12 GHz and output IP3 of +25 dBm, while requiring only 45 mA from a +4V supply voltage. The Psat output power of up to +15 dBm enables the LNA to function as a LO driver for many of Hittite's balanced, I/Q or image reject mixers. The HMC772LC4 also features I/Os that are DC blocked and internally matched to 50 Ohms, making it ideal for SMT based high capacity microwave radio applications. The HMC772LC4 is housed in a RoHS compliant 4x4 mm QFN leadless ceramic package.

Features

Noise Figure: 1.8 dB

Gain: 15 dB

Output IP3: +25 dBm

P1dB Output Power: +13 dBm

50 Ohm Matched Input/Output

Supply Voltage: +4V @ 45 mA

24 Lead Ceramic 4x4mm SMT Package: 16mm²

Typical Applications

This HMC772LC4 is ideal for:

• Wideband Communication Systems

• Surveillance Systems

• Point-to-Point Radios

• Point-to-Multi-Point Radios

• Military & Space

• Test Instrumentation
