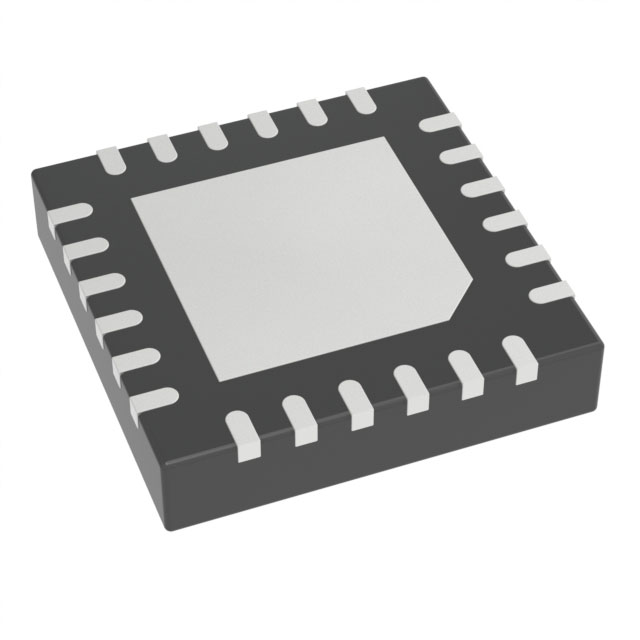

The ADRF5250BCPZRL is a general-purpose, single-pole, five-throw (SP5T) reflectorless switch manufactured using a silicon process. It is available in a 4 mm × 4 mm, 24-lead-frame chip size package (LFCSP) and offers high isolation and low insertion loss. An integrated negative voltage generator allows operation with a single positive supply voltage. An integrated negative voltage generator allows operation with a single positive supply voltage from 3.3 V to 5 V. The LFCSPs are also available with a single positive supply voltage. When the VSS pin is grounded, the VDD pin will be subjected to a single positive supply voltage from 3.3 V to 5 V. The VDD pin will be subjected to a single positive supply voltage from 3.3 V to 5 V when the VSS pin is grounded. The negative voltage generator can be disabled when an external -3.3 V negative supply voltage is applied to the VSS pin.

Product Characteristics

RF Type: General Purpose

Topology: Absorption

Chip: SP5T

Frequency Range: 100MHz ~ 6GHz

Isolation: 46 dB

Insertion Loss: 1.8 dB

Test Frequency: 6 GHz

IIP3: 57 dBm

Impedance: 50 Ohms

Voltage - Supply: 3V ~ 5.25V

Operating Temperature: -40°C ~ 105°C (TC)

Mounting Type: Surface Mount

Package / Case: 24-WFQFN Open Pad, CSP

Delivery Range: 24-LFCSP (4x4)

Applications

● Cellular/4G infrastructure

● Wireless infrastructure

● Mobile radio

● Test equipment
