The LTC4372HMS8 is a forward high voltage ideal diode controller that drives an external N-channel MOSFET in place of a Schottky diode. They control the forward voltage drop across the MOSFET to ensure current delivery or current transfer from one path to another. 5µA of operating current provides high efficiency for intermittent load applications or always-on backup power. A fast shutdown feature minimises reverse transients if the power supply fails or is shorted.

Product Characteristics

Type: N+1 ORing Controller

FET Type: N-Channel

Ratio - Input: Output: 1:1

Internal Switch: None

Delay Time - On: 500 μs

Delay Time - Off: 500 ns

Current - Output (Max): 10 µA 10 µA

Current - Supply: 5 µA

Voltage - Supply: 2.5V ~ 80V

Applications: Automotive Industry, Backup Power

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

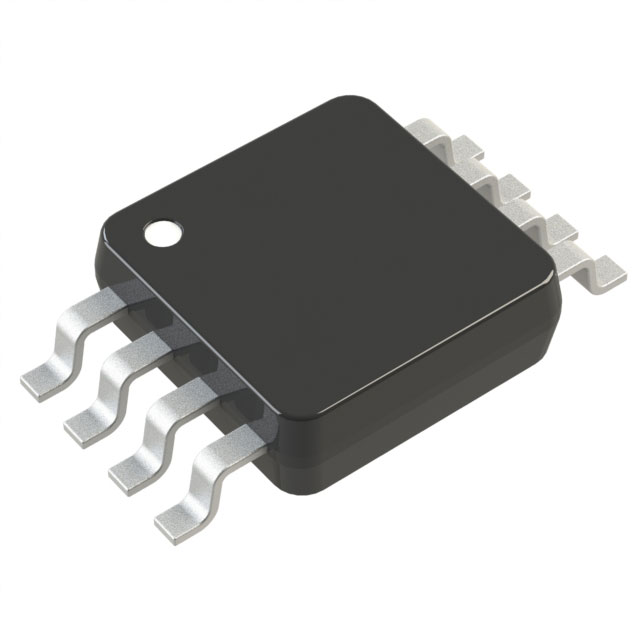

Package/Shell: 8-TSSOP, 8-MSOP (0.118" wide, 3.00 mm)

Availability: 8-MSOP

Applications

● Automotive battery protection

● Redundant power supplies

● Portable instruments

● Solar power systems

● Energy harvesting applications

● Power retention
