The LTC4413EDD consists of two monolithic ideal diodes, each capable of supplying up to 2.6A of current from an input voltage of 2.5V to 5.5V. Each ideal diode uses a 100mΩ P-channel MOSFET to independently connect INA to OUTA and INB to OUTA. The voltage drop across each diode is adjustable to as low as 28mV during normal forward operation. Quiescent current is less than 40µA and diode current is up to 1A.

Product Attributes

Type: Source Selector Switch

FET Type: P-Channel

Ratio - Input: Output: 2:1

Internal Switch: Yes

Delay Time - On: 50µs

Delay Time - Off: 4µs.

Current - Output (max.): 2,6 А

Current - Supply: 25 µA

Voltage - Supply: 2,5V ~ 5,5V

Application: portable/mobile devices

Operating temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

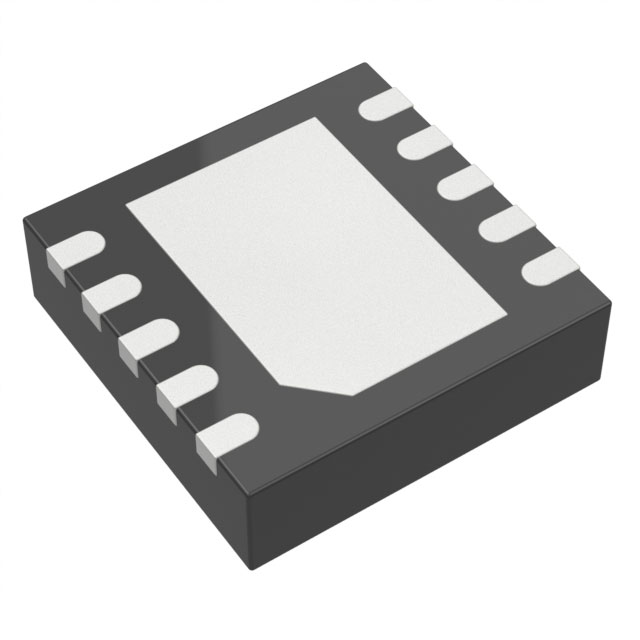

Package/Enclosure: 10-WFDFN (with open area)

Power Supply Included: 10-WFDFN (3x3)

Applications

● Handheld battery and wall adapter diodes ORing products

● Battery backup diodes ORing

● Power switches

● USB peripherals

● Uninterruptible power supplies
