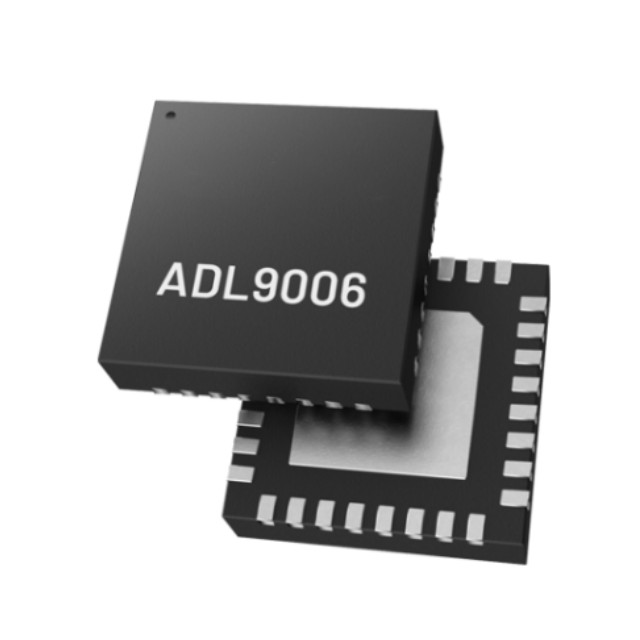

The ADL9006ACGZN is a gallium arsenide (GaAs), pseudo-crystalline high electron mobility transistor (pHEMT), single-chip microwave integrated circuit (MMIC), low-noise amplifier that operates over the frequency range of 2 GHz to 28 GHz. The amplifier provides 15.5 dB of gain, a noise figure of 2.5 dB, an output third-order crossmodulation intercept (OIP3) of 26 dBm, and 20 dBm output power (1 dB compression (P1dB)). 20 dBm output power (1 dB compression (P1dB)) with a power consumption of 53 mA (from a 5 V supply).The ADL9006ACGZN is self-biased to achieve a supply current of 53 mA (IDD) when powered from a single positive supply only.

The ADL9006ACGZN amplifier inputs and outputs are internally matched to 50 Ω.

Features

P1dB: 20 dBm at 2 GHz to 6 GHz (typical)

PSAT: 20.5 dBm (typical) from 2 GHz to 6 GHz

Gain: 15.5 dB typical from 6 GHz to 28 GHz

Noise Index: 2.5 dB typical from 2 GHz to 20 GHz

OIP3: 26 dBm at 2 GHz to 6 GHz (typical)

Supply voltage: 5 V at 53 mA

Matched 50 Ω inputs and outputs

Applications

Test instrumentation

Military and space

Local oscillation driver amplifiers
