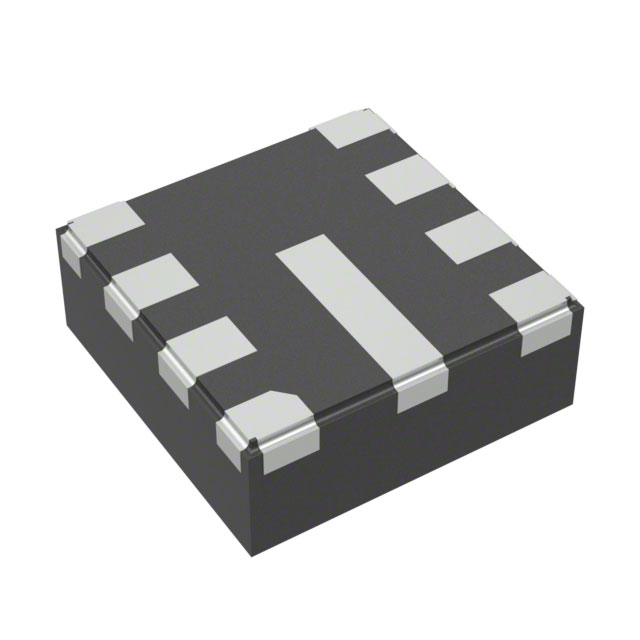

LMR36503RFRPER is the industry smallest 65 V, 0.3 A synchronous step-down DC/DC converter in 2-mm × 2-mm HotRod package.

Feature

Designed for rugged industrial applications

Junction temperature range –40°C to +150°C

Input transient protection up to 70 V

Wide input voltage range: 3.0 V (fallingthreshold) to 65 V

Low EMI and minimized switch node ringing

Adjustable, 5-V fixed output voltage optionsavailable

Suited for scalable industrial power supplies:

Pin compatible with LMR36506 (65 V, 600 mA)

Adjustable switching frequency: 200 kHz to 2.2MHz with RT pin variant

Minimized solution size and cost:

Highest power density with internalcompensation and reduced external componentcount

Ultra-small, 2-mm × 2-mm HotRod™ packagewith wettable flanks available

High efficiency across load range with low powerdissipation:

> 90% peak efficiency at 1 MHz (5 VOUTadjustable)

Ultra-low operating quiescent current at no load

4 µA at 24 VIN to 3.3 VOUT (fixed output option)

Applications

Factory automation: field transmitters and process sensors

Building automation: HVAC and fire safety

Appliances: garden and power tools
