The LM61495RPHR buck converters are fixed or adjustable output voltage regulators that provide a fixed or adjustable output voltage that can be set from 1V to 95% of the desired input voltage. These regulators operate over a wide input voltage range of 3V to 36V with transient tolerances up to 42V.

Features

- Provides Functional Safety

- Documentation to aid in the design of functionally safe systems

- Input voltage range: 3V to 36V

- RESET output with filter and delayed release

- Low EMI can be achieved:

- CISPR 11/32 Class B compliant EVMs

- Pin configurable spread spectrum

- Adjustable SW node rise time

- Above and below AM band operation: pins can be configured for fixed 400kHz and 2.2MHz, or adjustable between 200kHz and 2.2MHz

- Low EMI symmetrical pin arrangement

- Pin configurable in light load mode for constant frequency or pulse frequency modulation (PFM)

- High Efficiency Solutions

- 95% efficiency with 8A loads

- 5µA input current at no load in auto mode

- <1µA shutdown current (typical)

- High power density

- Built-in compensation, soft start, current limit, thermal shutdown and UVLO

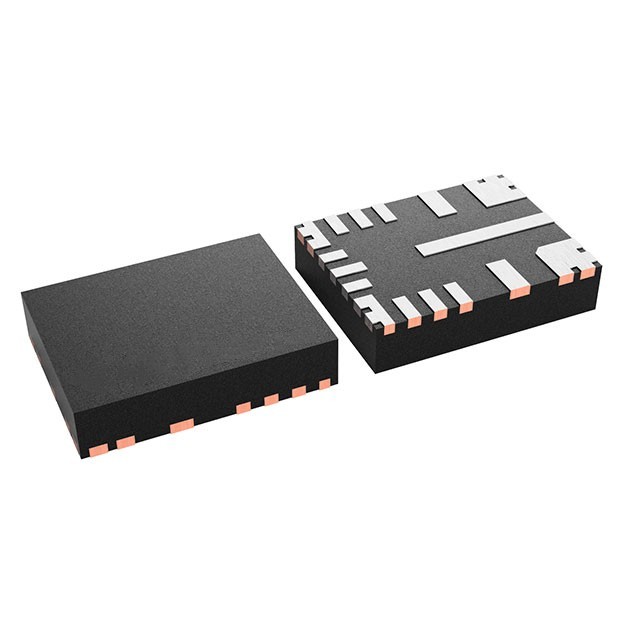

- 4.5mm × 3.5mm wetted side QFN package

Applications

- Industrial transport

- Avionics

- Industrial PCs

- PLCs, DCSs, and PACs

- Semiconductor Test Equipment
