The LM5165QDGSRQ1 device is an easy-to-use, compact 3V to 65V, ultra-low IQ synchronous buck converter that provides high efficiency over a wide range of input voltages and load currents. The device features integrated high-side and low-side power MOSFETs capable of delivering up to 150mA of output current at a fixed output voltage of 3.3V or 5V, or at an adjustable output voltage.

Features

- Meets AEC-Q100 for automotive applications

- Device Temperature Class 1: -40°C to 125°C ambient temperature range

- Device HBM ESD Classification 2

- Device CDM ESD Classification C5

- Wide input voltage range of 3V to 65V

- 10.5µA no-load quiescent current

-40°C to 150°C junction temperature range

- Fixed (3.3V and 5V) or Adjustable Output Voltage

- EN55022/CISPR 22 EMI compliant

- Integrated 2Ω PMOS Buck Switch

- Supports 100% duty cycle for low dropout voltages

- Integrated 1Ω NMOS Synchronous Rectifier

- No external rectifier diode required

- Programmable current limit setpoints (four levels)

- Optional PFM or COT mode operation

- 1.223V ±1% internal voltage reference

- 900µs internal or programmable soft-start

- Effective slew rate control for low EMI

- Monotonic start-up to pre-biased output

- No loop compensation or bootstrap components

- Precision enable and input UVLO with hysteresis

- Thermal shutdown protection with hysteresis

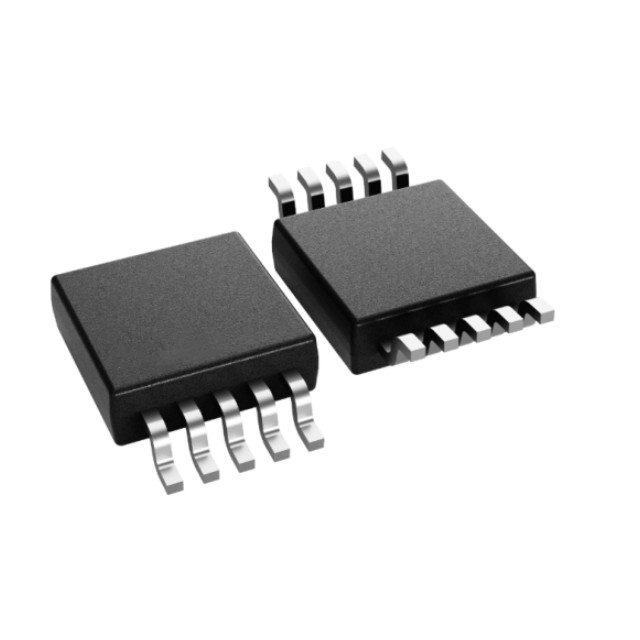

- 10-pin VSON and VSSOP packages

- Reduced Time-to-Market with the TPSM265R1 Module

- Creating Custom Regulator Designs with WEBENCH® Power Designer

Applications

- Automotive and battery-powered equipment

- High Voltage LDO Replacement

- General-purpose bias power supplies
