The LTC3643IUDD is a bi-directional synchronous step-up charger and buck converter capable of efficiently charging an array of up to 40V capacitors using an input supply with a voltage between 3V and 17V. When the input supply drops below the programmable power-failure threshold, the boost charger operates in reverse as a synchronous buck regulator to supply the system voltage rails from the backup capacitors in the event of such a power interruption/failure.

Benefits and Features

Bi-directional synchronous step-up capacitor charger/buck regulator for system backup power supply

Wide input voltage range: 3V to 17V

Up to 40V capacitor voltage memory for high energy backup

2A maximum CAP charging current

Integrated N-channel power MOSFETs (150mΩ top and 75mΩ bottom)

Integrated N-channel power MOSFET (50mΩ) for output/CAP disconnection

Input current limit during charging

Fast 1MHz switching frequency

±1% reference accuracy for system voltage regulation

Indicator outputs for charging status and input power failures

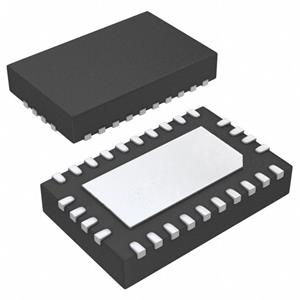

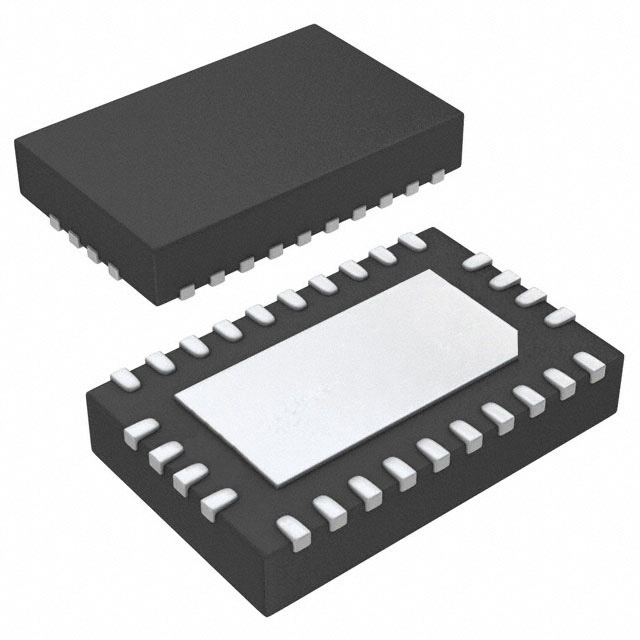

Low-profile 24-pin 3mm x 5mm QFN package

Applications

Backup capacitor systems

Power-fail back-up systems

Solid state drives
