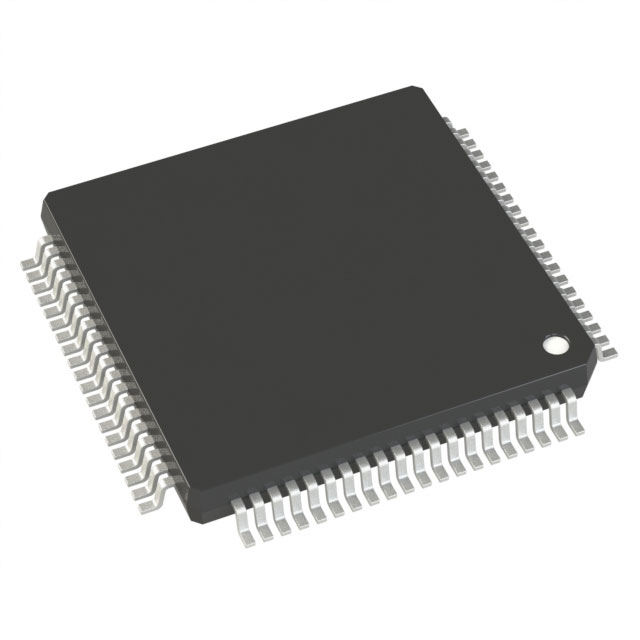

R5F51406ADFN 32-bit Ultra-Low-Power RXv2 Microcontrollers (MCUs) support the lowest power consumption while improving the general-purpose RX100 series. Enhanced performance is achieved with the switch from the RXv1 to the RXv2 core, which raises the clock rate from 32MHz to 48MHz.

Feature

CPU: 48MHz RXv2 core with FPU/DSP Instructions

1.8V to 5.5V power supply voltage

256KB code Flash, 8KB Data Flash, 64KB SRAM

HMI: Capacitive touch sensing unit (CTSU2)

SCI (UART, Simple SPI/I2C), SPI, I2C, CAN

32/48/64/80-pin LFQFP, 64-pin LQFP, 32/48-pin HWQFN package optionsUltra-low energy consumption; reduced by 30% from existing RX100 series

12-bit ADC, 8-bit DAC, Comparator, Temp Sensor

AES-128/256, TRNG security features

High performance, 5V operation; performance equivalent to RX200 series

Capacitive touch sensing unit enables contactless UI with proximity switches

Improved usability with CAN interface and increased IO ports

Low pin count package (32-pin LFQFP)

Applications

General-purpose

Home appliances

Washer/dryer, dishwasher, refrigerator, cooking range, water heater

Industrial automation and building automation

HVAC, smoke detector, thermostat, alarm system, lighting
