The MAX17220ALT is an ultra-low quiescent current DC-DC boost converter with 225mA peak inductor current limit and True Shutdown™.

SPECIFICATIONS

Product Category: Switching Regulators

Mounting Style: SMD/SMT

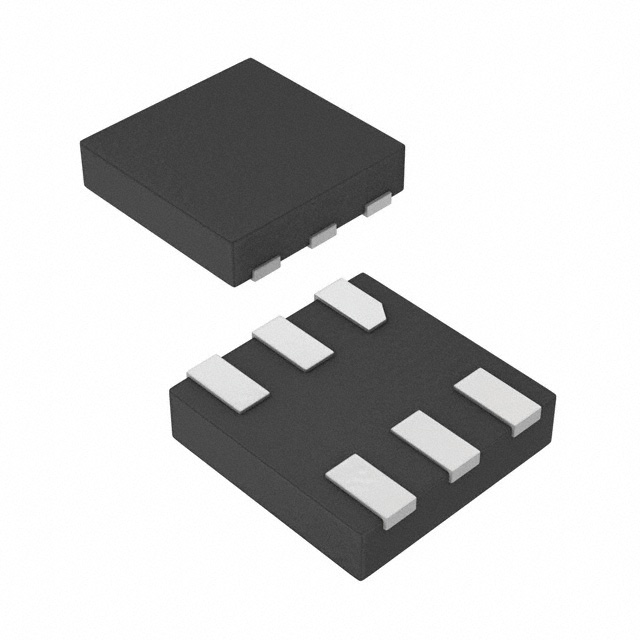

Package / Case: uDFN-6

Topology: Boost

Output Voltage: 1.8 V to 5 V

Output Current: 225 mA

Number of outputs: 1 Output

Input voltage (min): 400 mV

Input voltage (max): 5.5 V

Quiescent current: 500 pA

Switching frequency: 2 MHz

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Series: MAX17222-MAX17225

Development Kit: MAX17220EVKIT

Input Voltage: 400 V to 5.5 V

Product Type: Switching Voltage Regulators

Shutdown: Shutdown

Factory Package Quantity: 2500

Sub Category: PMIC - Power Management ICs

Supply Voltage - Min: 400 mV

Type: Nano Power Synchronous Converter

Unit weight: 93.048 mg

Applications

Optical Heart Rate Monitoring (OHRM) LED Drivers

Real Time Clock (RTC)/Supercapacitor Backups

Alarm buzzers

Primary Battery Portable Systems

Tiny Low Power IoT Sensors

Secondary Battery Portable Systems

Wearable Devices

Battery-powered medical devices

Low Power Wireless Communication Products
