The LT8300ES5 is a 100V micro-power isolated flyback converter with 150V, 260mA switches. By sampling the isolated output voltage directly from the main anti-shock shape, the device does not need a third winding or optical isolator to achieve voltage regulation. The output voltage is set using a single external resistor. Internal compensation and soft starting further reduce the number of external components.

specification

Function: Boost/buck

Output configuration: positive or negative to provide isolation

Topology: flyback

Output type: -

Output number: 1

Voltage - input (min) : 6V

Voltage - Input (Max) : 100V

Voltage - Output (Min/fixed) : -

Voltage - Output (Max) : -

Current-output: 260mA

Frequency - switch: 7.5kHz ~ 750kHz

Synchronous rectifier: None

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

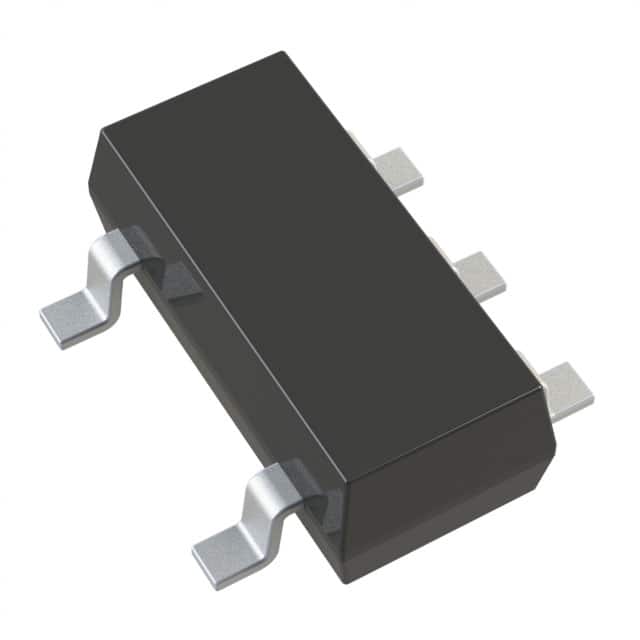

Package/Housing: SOT-23-5 Thin, TSOT-23-5

Supplier device package: TSOT-23-5

Basic product number: LT8300

Application

Isolated telecommunications, automotive, industrial and medical power supplies

Isolated auxiliary/housekeeping power supply
