The LTC3309AJV is a very small, high efficiency, low noise, monolithic synchronous 6A step-down DC/DC converter operating from 2.25V to 5.5V. With constant frequency, peak current mode control, switching from 1MHz to 3MHz, and a minimum on-time as low as 22ns, the regulator provides fast transient response. The quiet switching architecture minimises EMI emissions.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 2.25V

Voltage - Input (Max): 5.5V

Voltage - Output (Min/Fixed): 0.5V

Voltage - Output (Max): 5.5V

Current - Output: 6A

Frequency - Switch: 2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

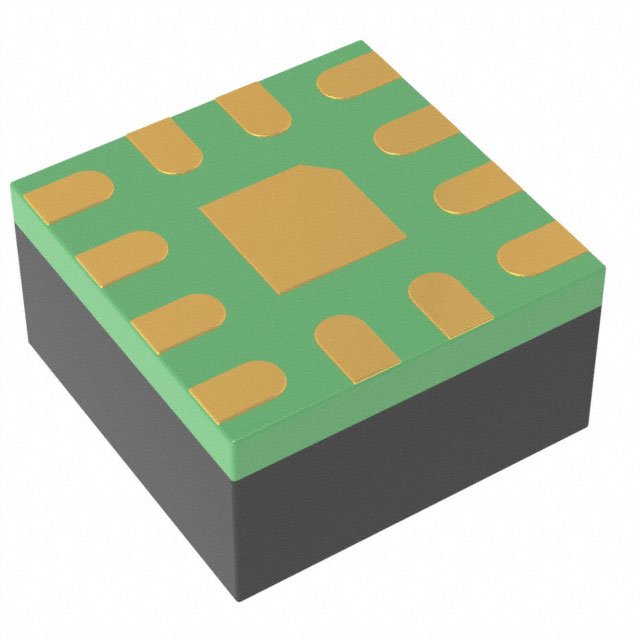

Package/Shell: 12-VFQFN Exposed Pad

Supplier Device Package: 12-LQFN (2x2)

Applications

● Optical networks, servers, telecommunications

● Automotive, industrial, telecommunications

● Distributed DC power systems (POL)

● FPGA, ASIC, µP core power supplies

● Battery powered systems
