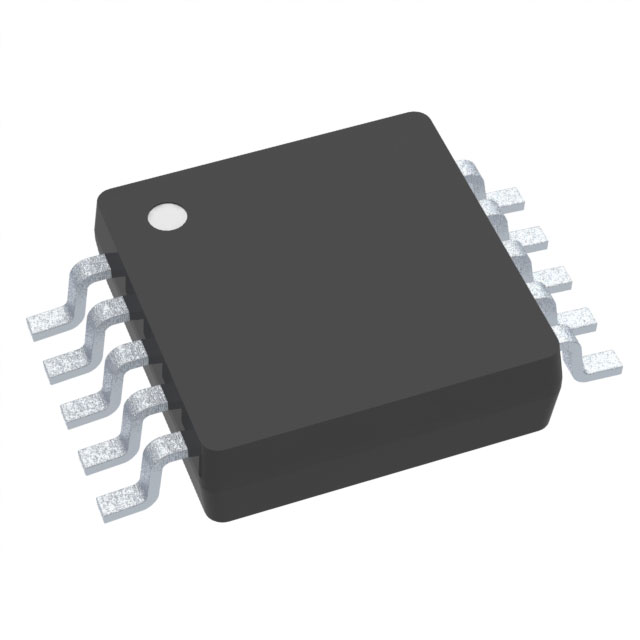

The ADS1115BQDGSRQ1 is a precision, low power, 16-bit, I2C-compatible analogue-to-digital converter (ADC). The device integrates a low-drift voltage reference and oscillator. A programmable gain amplifier (PGA) and digital comparator are also integrated. These features, along with a wide operating supply range, make the ADS1115BQDGSRQ1 ideal for sensor measurement applications.

Product Attributes

Number of bits: 16

Sample rate (per second): 860

Number of inputs: 2, 4

Input types: differential, single-ended

Data interface: I²C

Configuration: MUX-PGA-ADC

Ratio - S/H:ADC: 0:1

Number of A/D converters: 1

Architecture: Triangular Integral

Reference Type: Internal

Voltage - Supply, Analogue: 2V ~ 5.5V

Voltage - Supply, Digital: 2V ~ 5.5V

Features: PGA

Operating Temperature: -40°C ~ 125°C

Package/Housing: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package: 10-VSSOP

Mounting Type: Surface Mount

Applications

● Process-free camera modules

● Car centre information displays

● Automotive cluster displays

● Universal voltage and current monitoring
