The ADS9224RIRHBR is a pin-compatible, high-speed, dual-channel, synchronous sampling, analogue-to-digital converter, synchronous sampling analogue-to-digital converter (ADC) with integrated reference and reference buffer. The device operates from a single 5 V supply and supports unipolar, fully differential analogue input signals with excellent DC and AC specifications. Excellent AC performance and analogue input frequencies up to 1.5 MHz make the device suitable for wideband data acquisition. The device is suitable for wideband data acquisition (DAQ) systems.

Product Attributes

Number of bits: 16

Sample Rate (per second): 3M

Number of Inputs: 2

Input Type: Differential

Data interface: SPI

Configuration: ADC

Ratio - S/H:ADC: 0:1

Number of A/D converters: 2

Architecture: SAR

Reference Type: External, Internal

Voltage - Powered, Analogue: 4.5V ~ 5.5V

Voltage - Powered, Digital: 1.65V ~ 5.5V

Features: Synchronous Sampling

Operating Temperature: -40°C ~ 125°C

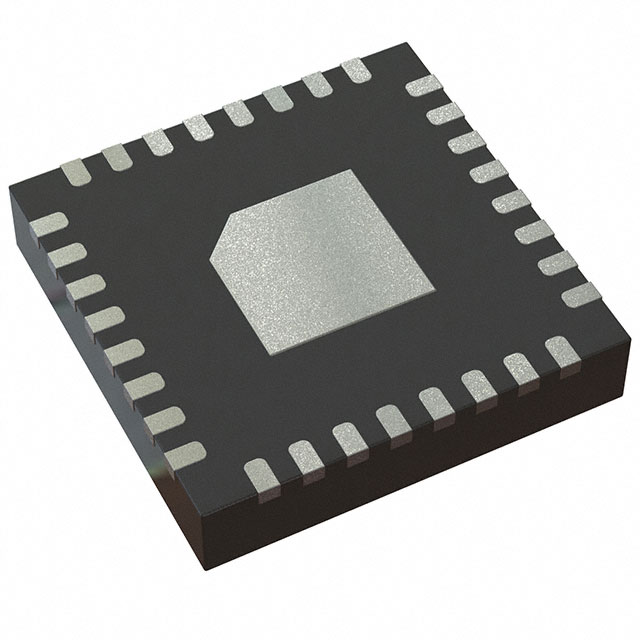

Package/Housing: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (5x5)

Mounting Type: Surface Mount

Applications

● Optical encoders: incremental and absolute

● Sonar receivers

● Optical networks EDFA gain control loops

● Power quality measurements

● Digital power supplies

● I/Q demodulators

● Medical imaging CT scanners, MRI scanners

● Impedance analysers
