The ADS8166IRHBR is a series of 16-bit, 8-channel, high-precision successive approximation registers (SARs). Powered by a single 5 V supply, it has a total throughput of 250 kSPS. The input multiplexers support longer settling times, making it easier to drive analogue inputs. The output of the multiplexer and the ADC analogue input are provided as device pins. They can be used as device pins. This configuration allows one ADC driver op amp to be used on all eight analogue inputs of the multiplexer.

Product Attributes

Number of bits: 16

Sample rate (per second): 250k

Number of Inputs: 8

Input Type: Pseudo-differential, single-ended

Data interface: SPI

Configuration: MUX-ADC

Ratio - S/H:ADC: 0:1

Number of A/D converters: 1

Architecture: SAR

Reference Type: External, Internal

Voltage - Powered, Analogue: 3V ~ 5.5V

Voltage - Powered, Digital: 1.65V ~ 5.5V

Features: Internal Oscillator

Operating Temperature: -40°C ~ 125°C

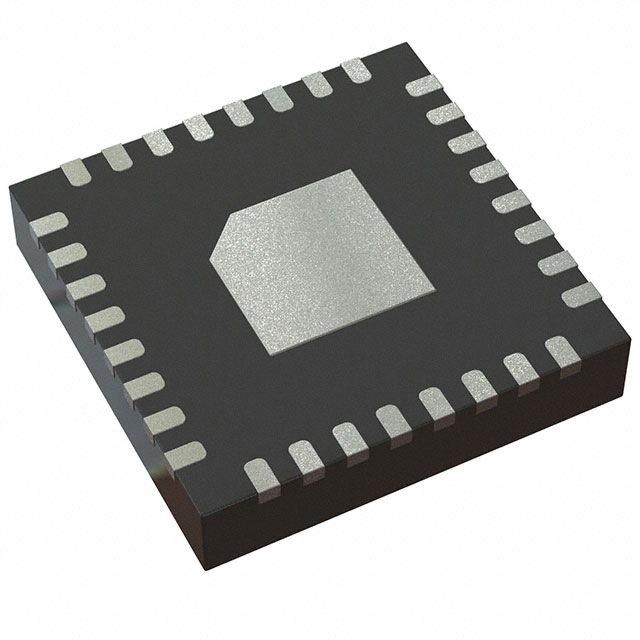

Package / Case: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (5x5)

Mounting Type: Surface Mount

Applications

● Analogue input modules

● Multi-parameter patient monitors

● Anaesthetic drug delivery systems

● LCD testing

● DC internal interconnections (metro)

● Optical modules
