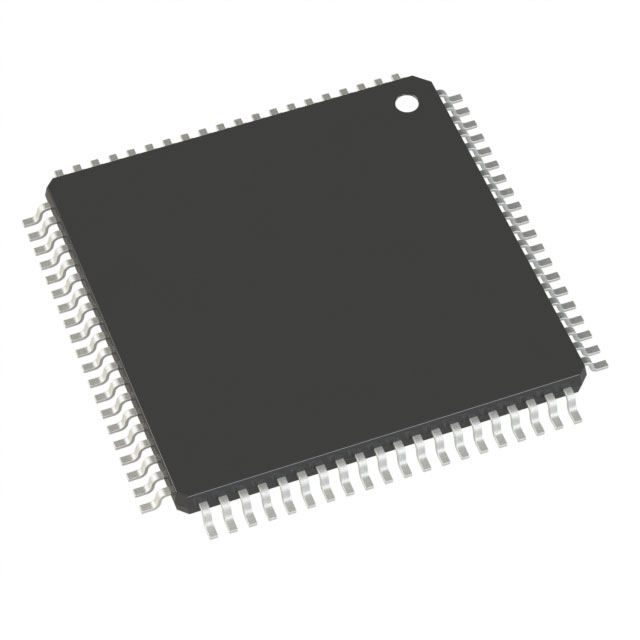

The AD7616BSTZ is a 16-bit DAS that supports 16 channels of dual simultaneous sampling. Powered by a single 5 V single supply, it accommodates ±10 V, ±5 V, and ±2.5 V true bipolar input signals while sampling at high throughput rates. Input signals are simultaneously sampled at throughput rates up to 1 MSPS per channel pair, with a signal-to-noise ratio of 90.5 dB. (Higher signal-to-noise performance is achieved with an oversampling rate (OSR) of 2 of 92 dB.) Input clamp protection circuits are capable of withstanding voltages up to ±21 V. Analogue input impedance is 1 MΩ, independent of sampling frequency. Single-supply operation, on-chip filtering, and high input impedance eliminate the need for driver op amps and external dual power supplies.

Product Attributes

Number of bits: 16

Sample rate (per second): 1M

Number of Inputs: 16

Input type: Single-ended

Data interfaces: DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™

Configuration: MUX-ADC

Number of A/D converters: 2

Architecture: SAR

Reference Type: External, Internal

Voltage - Supply, Analogue: 4.75V ~ 5.25V

Voltage - Powered, Digital: 2.3V ~ 3.6V

Features: Synchronous Sampling

Operating Temperature: -40°C ~ 125°C

Package/Case: 80-LQFP

Supplier Device Package: 80-LQFP (14x14)

Mounting Type: Surface Mount

Applications

● Power line monitoring

● Protective relays

● Multi-phase motor control

● Instrumentation and control systems

● Data Acquisition Systems (DAS)
