ADC3642IRSBT is low-noise, ultra-low power,14-bit, 10 to 65-MSPS, high speed analog-todigital converters. Designed for low power consumption, these devices deliver a noise spectral density of –155 dBFS/Hz.

Features

Dual channel

14-bit 10/25/65 MSPS ADC

Noise floor: –155 dBFS/Hz

Ultra-low power with optimized power scaling:29 mW/ch (10 MSPS) to 72 mW/ch (65 MSPS)

Latency: 1 clock cycle

14-Bit, no missing codes

INL: ±0.6 LSB; DNL: ±0.2 LSB

Reference: external or internal

Industrial temperature range: –40°C to +105°C

On-chip digital filter (optional)– Decimation by 2, 4, 8, 16, 32– 32-bit NCO

DDR and Serial CMOS interface

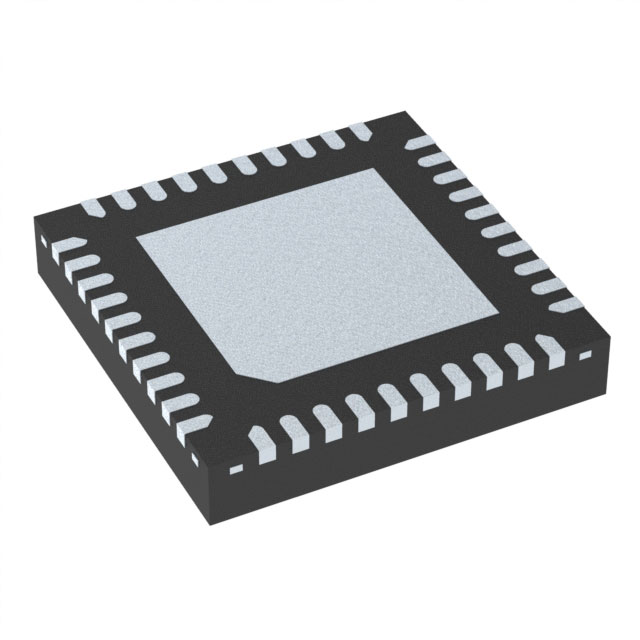

Small footprint: 40-VQFN (5 mm × 5 mm) package

Single 1.8-V supply

Applications

High-speed data acquisition

Industrial monitoring

Thermal imaging

Imaging and sonar

Software defined radio

Power quality

Communications infrastructure

High-speed control loops

Instrumentation

Smart grids

Spectroscopy

Radar

Source measurement unit (SMU)

GPS receiver

Sonar

Substation automation
