1EBN1001AE is an IGBT / MOSFET Gate Driver Booster designed for automotive motor drives above 10kW. It is based on high performance bipolar technology and aims at replacing buffer stages based on discrete devices.

Product Attributes

Driven Configuration High-Side or Low-Side

Channel Type Single

Number of Drivers 1

Gate Type IGBT, N-Channel, P-Channel MOSFET

Voltage - Supply 13V ~ 18V

Logic Voltage - VIL, VIH 1.5V, 3.5V

High Side Voltage - Max (Bootstrap) 1200 V

Rise / Fall Time (Typ) 50ns, 90ns

Operating Temperature -40°C ~ 150°C (TJ)

Mounting Type Surface Mount

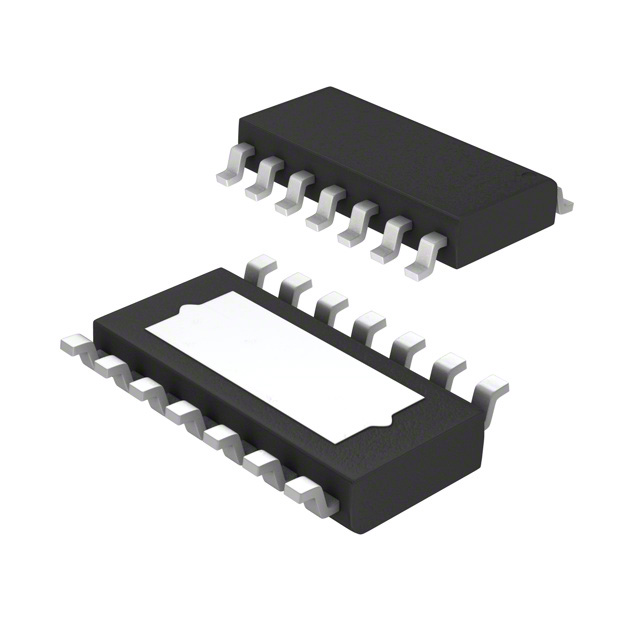

Package / Case 14-SOIC (0.154", 3.90mm Width) Exposed Pad

Supplier Device Package PG-DSO-14-43

Target Applications

Inverters for automotive Hybrid Vehicles (HEV) and Electric Vehicles (EV).

High Voltage DC/DC converter.

Industrial Drive.
