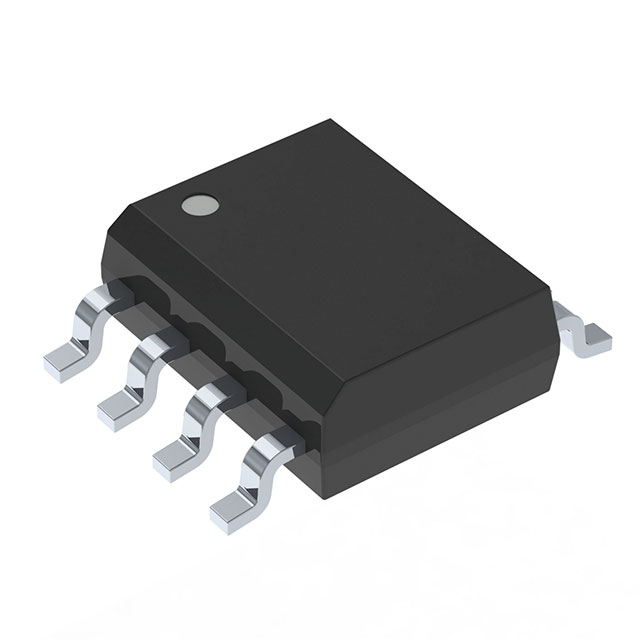

2ED2108S06F is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Product Attributes

Driven Configuration Half-Bridge

Channel Type Synchronous

Number of Drivers 1

Gate Type IGBT, N-Channel MOSFET

Voltage - Supply 10V ~ 20V

Logic Voltage - VIL, VIH 1.1V, 1.7V

Current - Peak Output (Source, Sink) 290mA, 700mA

Input Type Non-Inverting

High Side Voltage - Max (Bootstrap) 650 V

Rise / Fall Time (Typ) 100ns, 35ns

Operating Temperature -40°C ~ 125°C (TA)

Mounting Type Surface Mount

Package / Case 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package PG-DSO-8-53

Product Features

Unique Infineon Thin-Film-Silicon On Insulator (SOI) -technology

Negative VS transient immunity of 100 V

Floating channel designed for bootstrap operation Operating voltages (VS node) upto + 650 V

Maximum bootstrap voltage (VB node) of + 675 V

Integrated ultra-fast, low resistance bootstrap diode

Logic operational up to –11 V on VS Pin

Negative voltage tolerance on inputs of –5 V

Independent under voltage lockout for both channels

Schmitt trigger inputs with hysteresis

3.3 V, 5 V and 15 V input logic compatible

Maximum supply voltage of 25 V

Dual package options of DSO-8 and DSO-14

High and low voltage pins separated for maximum creepage and clearance
