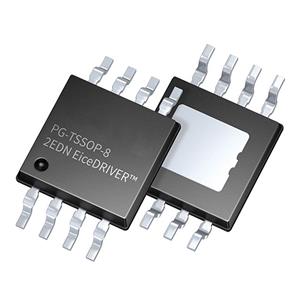

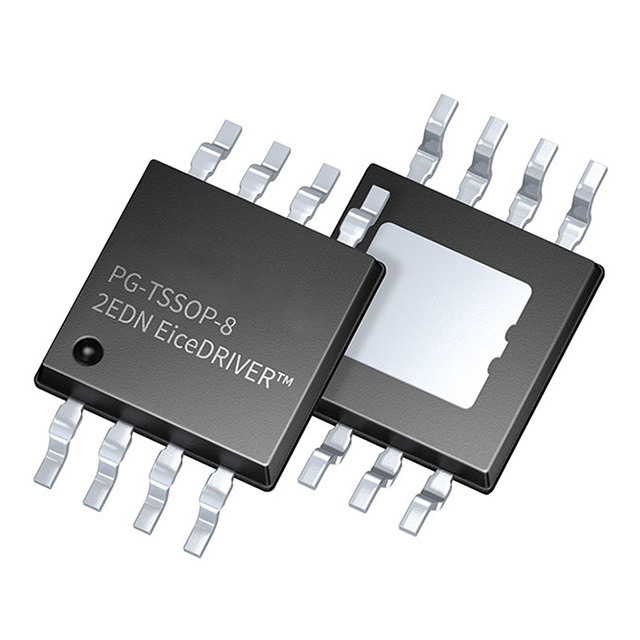

2EDN8533R is Dual-channel low-side 5 A gate driver ICs with low output resistance and excellent timing accuracy. It is offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pin SOT23 package. High output current capability together with active output voltage clamping, tight timing specifications, and optimized start-up and shut-down times, make the 2EDN family the first choice for many fast-switching applications.

Product features

• ±5 A source/sink currents

• 19 ns typ. propagation delay

• +6/-4 ns propagation delay accuracy

• 1.8 µs output start-up time

• 500 ns output shut-down time

• Active output voltage clamping

• -12 V input robustness

• 5 A reverse current robustness

• 4 V and 8 V UVLO options

• Package options:

– 8-pin DSO, TSSOP, WSON

– 6-pin SOT23

• Fully qualified for industrial applications according to JEDEC

Applications

• Switch-mode power-supplies

• DC-DC power converters

• Synchronous rectification stages

• Power factor correction systems
