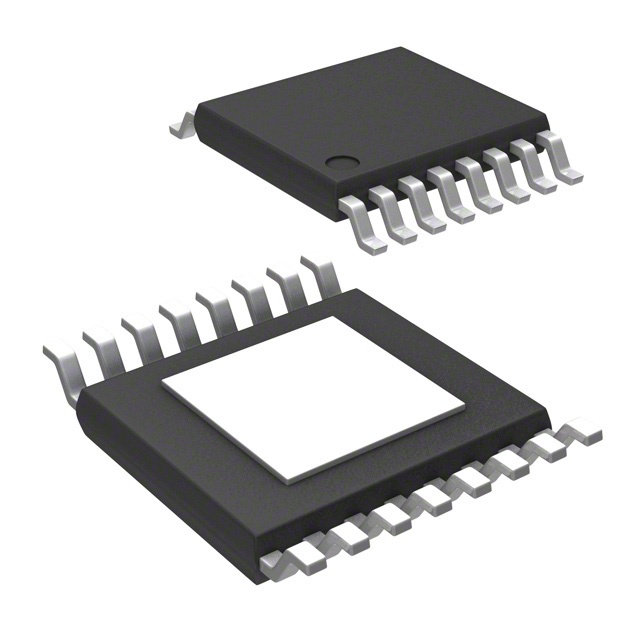

The TPS2HB50BQPWPRQ1 device is a dual-channel smart high-side switch for 12V automotive systems. The device incorporates powerful protection and diagnostic features to ensure output port protection even in the event of a harmful event such as a short circuit in an automotive system.

Features

- Automotive Compliant

- The following features are compliant with AEC-Q100:

- Device Temperature Class 1: Ambient operating temperature range TA =-40°C to 125°C

- Device HBM ESD Classification 2

- Device CDM ESD Classification C4B

- Withstands 40V load sag

- Dual Intelligent High-Side Switch with 50mΩ RON (TJ = 25°C)

- Improves system-level reliability with adjustable current limit

- Adjustable current limit from 1.6A to 18A

- Powerful integrated output protection:

- Integrated thermal protection

- Shorted ground or shorted battery protection

- Reverse battery event protection including automatic activation in the event of voltage reversal

- Automatic shutdown in the event of power loss or ground failure

- Integrated output clamp to demagnetise inductive loads

- Configurable fault handling

- Analogue detection outputs can be configured for accurate measurements:

- Load current

- Device temperature

- Fault indication via SNS pin

- Open load and battery short-circuit detection

Applications

- Infotainment displays

- ADAS modules

- Heating elements:

- Seat heaters

- Spark plugs

- Fuel tank heater

- Transmission control unit

- HVAC air conditioning

- Body control module

- Incandescent and LED lighting
