The LM25143QRHARQ1 is a 42V synchronous buck DC/DC controller for high current single or dual outputs. Derived from the wide VIN range controller family, the device features an interleaved stackable peak current mode control architecture that enables simple loop compensation, fast transient response, excellent load and line regulation, and precise current sharing through parallel phases for high output currents.

specification

Output type: transistor driver

Function: Depressurize

Output configuration: positive

Topology: depressurize

Output number: 2

Output phase: 2

Voltage - power supply (Vcc/Vdd) : 3.5V ~ 42V

Frequency - switch: 100kHz ~ 2.2MHz

Duty cycle (Max.) : -

Synchronous rectifier: Yes

Clock synchronization: Yes

Serial interface: -

Control features: current limiting, no-load time control, enable, frequency control, good power supply, soft start, tracking

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount, wets flanks

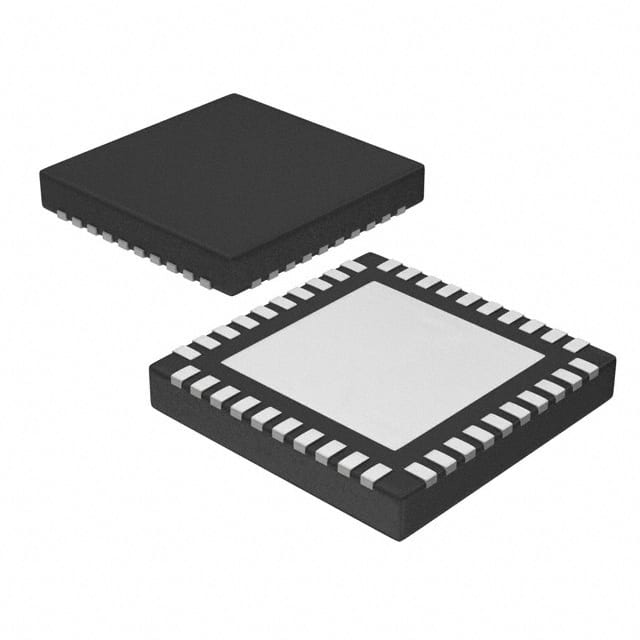

Package/housing: 40-VFQFN bare pad

Supplier Package: 40-VQFN (6x6)

Typical applications include automotive electronics systems, infotainment systems, instrument packs, advanced driver assistance systems (ADAS), body electronics, and lighting.
