The DCG17P1200HR is ideally suited for applications requiring improved efficiency, reliability and thermal management. These silicon carbide diodes and rectifiers have a maximum reverse repetitive blocking voltage of 1200V. They are available in dual, phase-leg or common cathode configurations. The devices have an IFAVMTotal range of 12.5 A to 60 A. These diodes and rectifiers are available in SOT-227B or ISOPLUS247 packages. These devices are ideally suited for use in solar inverters, UPS, welding equipment, switch-mode power supplies, medical equipment, or high-speed rectifiers.

Product Attributes

Technology: SiC (Silicon Carbide) Schottky

Voltage - DC Reverse (Vr) (Max): 1200 V

Current - Average Rectifier (Io): 18A

Voltage - Forward (Vf) at Different If: 1.8 V @ 20 A

Speed: Fast Recovery = < 500ns, > 200mA (Io)

Current - reverse leakage at varying Vr: 200 µA @ 1200 V

Capacitance at varying Vr, F: 1500 pF @ 0 V, 1 MHz

Mounting Type: Through Hole

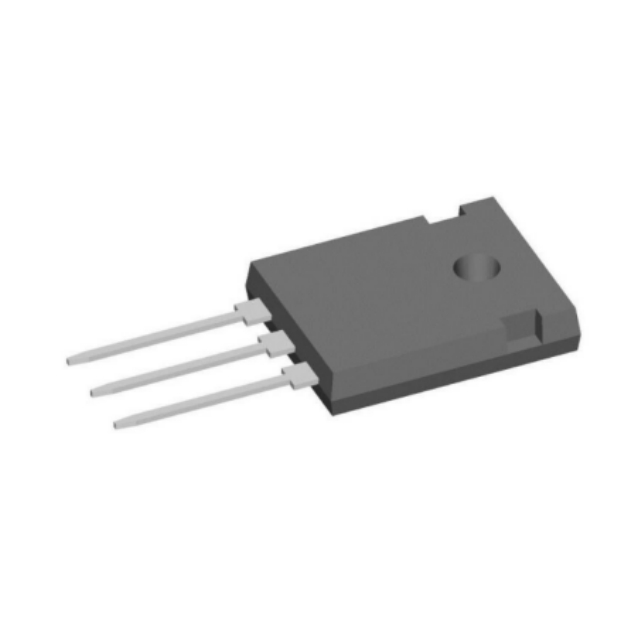

Package/Housing: TO-247-3

Supplier Device Package: ISO247

Operating Temperature - Junction: -40°C ~ 150°C

Applications

● Solar inverters

● Uninterruptible power supplies (UPS)

● Welding equipment

● Switch-mode power supplies

● Medical equipment

● High-speed rectifiers
