The TPS7B68-Q1 is a 500mA watchdog LDO designed for operation up to 40V with a typical quiescent current of only 19µA at light load conditions, incorporating a programmable function for selecting a window or standard watchdog and using an external resistor to set the watchdog time to within 10% accuracy.

Features

- Suitable for automotive electronics applications

- With the following results in accordance with AEC-Q100:

- Device temperature class 1: ambient operating temperature range of -40°C to +125°C

- Device HBM ESD classification class 2

- Device CDM ESD classification class C4B

- Maximum output current: 500mA

- Wide VIN input voltage range from 4V to 40V, transients up to 45V

- Two fixed output voltages of 3.3V and 5V

- Maximum dropout voltage: 600mV (500mA current)

- Stable over a wide range of capacitance (4.7µF to 500µF) and ESR (0.001Ω to 20Ω) when operating with output capacitors

- Low quiescent current (I(Q)):

- < 4µA when EN is low (off mode)

- 19µA typical at light load (WD_EN high) (watchdog disabled)

- Configurable for window watchdog and standard watchdog

- Switching window ratio configurable as 1:1 or 8:1

- Fully adjustable watchdog period (10ms to 500ms)

- 10% precision watchdog period

- Dedicated WD_EN pin for watchdog switching control

- Fully adjustable power normal threshold and power normal delay period

- Low input voltage tracking for UVLO

- Integrated fault protection:

- Overload current limit protection

- Thermal shutdown

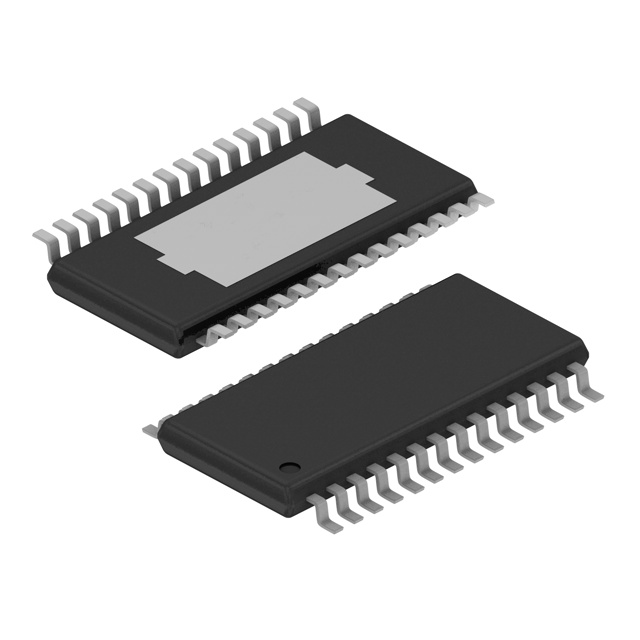

- 28-pin HTSSOP package

Applications

- Automotive MCU power supplies

- Body Control Modules (BCM)

- Body comfort modules

- EV and HEV battery management systems (BMS)

- Electronic gear shifters

- Transmission Control Unit (TCU)

- Electric Power Steering (EPS)
