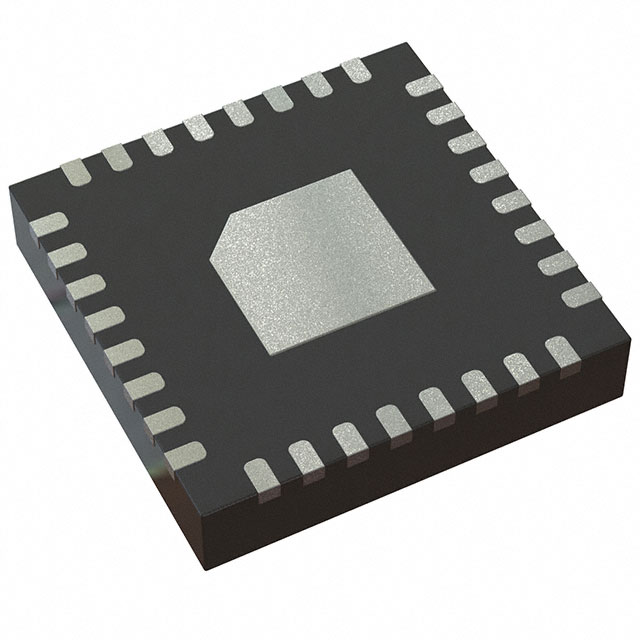

ADS125H01IRHBR is a ±20-V input, 24-bit, delta-sigma analog-to-digital converter (ADC). The ADC features a low noise programmable gain amplifier, a clock oscillator, and signal or reference outof-range monitors.

Features

±20-V input, 24-bit delta-sigma ADC

Programmable data rate: 2.5 SPS to 40 kSPS

High-voltage, 1-GΩ input impedance PGA

Differential input range: up to ±20 V

Absolute input range: up to ±15.5 V

Programmable attenuation and gain

High-performance ADC

Noise: 45 nVRMS (gain = 128, 20 SPS)

CMRR: 105 dB

50-Hz and 60-Hz rejection: 95 dB

Offset drift: 10 nV/°C

Gain drift: 1 ppm/°C

INL: 2 ppm

Integrated features and diagnostics:

Internal oscillator

Signal and reference voltage monitors

Cyclic redundancy check (CRC)

Operating temperature: –40°C to +125°C

Applications

PLC analog input modules:

Voltage (±10 V or 0 V to 5 V)

Current (4 mA to 20 mA with shunt)

Data acquisition (DAQ):

High common-mode voltage inputs

High-side current measurement

Battery tests
