The EiceDRIVERTM 2ED4820EMXUMA2 is an intelligent high voltage side N-channel MOSFET gate driver with two outputs controlled via SPI. The integrated powerful charge pump allows the external MOSFET to conduct continuously. Because of the driver's increased on and off capability, the number of MOSFETs can be easily increased to manage high currents in the hundreds of amps while ensuring fast switching. the MOSFETs can be controlled in either common-mode or common-source back-to-back configurations.

Product Attributes

Drive Configuration: High End

Channel Type: Standalone

Number of Drivers: 2

Gate Type N-Channel: MOSFET

Voltage - Supply: 20V ~ 70V

Logic Voltage - VIL, VIH: 0.4V, 2.6V

Current - Peak Output (Pour In, Pull Out): 300mA, 1.3A

Input Type: Non-Inverting

Rise/Fall Time (typical): 3µs, 3µs (max)

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

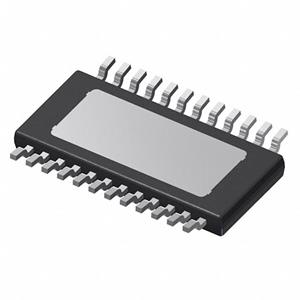

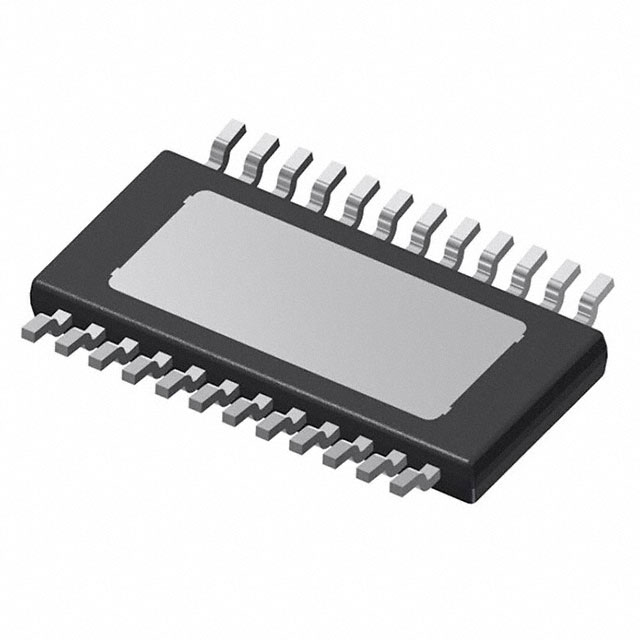

Package/Shell: 24-TSSOP (0.154", 3.90mm wide) Exposed Pad

Supplier Device Package: PG-TSDSO-24

Potential Applications

48 V battery protection switches

48 V input protection switches for DCDC converters, motor controls, etc.

48 V relay and fuse replacement
