The MCP47CMB14-E/ML is a single and dual channel 8-, 10-, and 12-bit buffered voltage output device. Digital-to-analogue converter (DAC) with volatile or MTP memory, and an I2C serial interface.The MTP memory is user-writable up to 32 times per specific register. It requires a high level (typically 7.5V) on the HVC pin to successfully program the desired memory location. Non-volatile memory includes power-on output values, device configuration registers, and general-purpose memory.

Product Attributes

Number of bits: 10

Number of digital-to-analogue converters: 4

Build Time: 16µs (standard)

Output Type: Voltage - Buffered

Differential outputs: None

Data interface: I²C

Reference Type: External, Internal, Power Supply

Voltage - Powered, Analogue: 1.8V ~ 5.5V

Voltage - Powered, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±0.25, ±0.25

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C

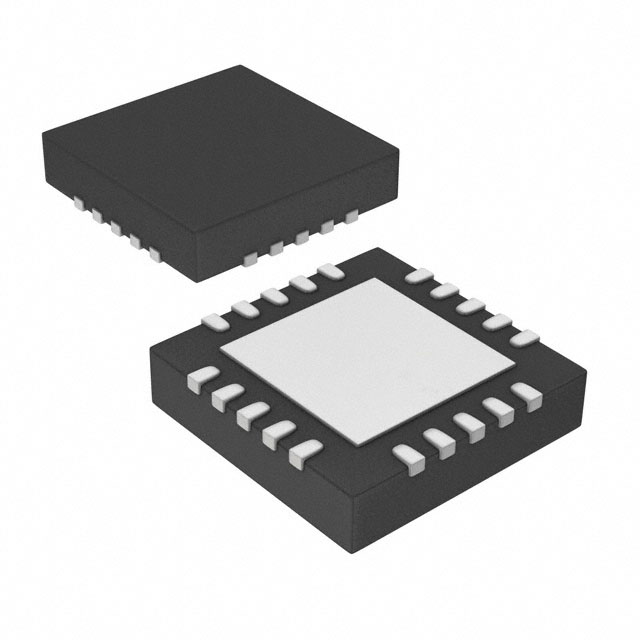

Package/Housing: 20-VFQFN Exposed Pad

Supplier Device Package: 20-QFN (4x4)

Mounting Type: Surface Mount

Application

● Setpoint or bias trimming

● Sensor calibration

● Low-power portable instruments

● PC peripherals

● Data acquisition systems
