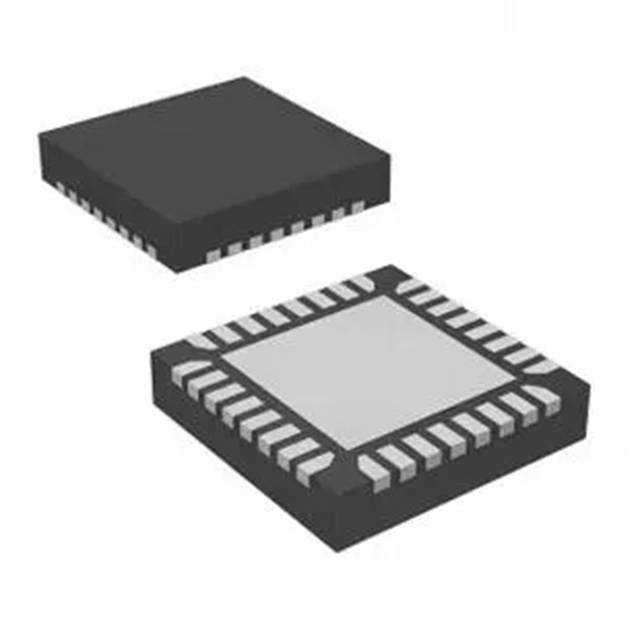

6ED2742S01QXTMA1 is a 160 V SOI based gate driver designed for three phase BLDC motor drive applications.

Features

Bootstrap voltage (VB node) of +160 V

Floating channel designed for bootstrap operation

Integrated current sense amplifier (CSA) with selectable gain

Integrated over-current protection with selectable VREF threshold

100% duty cycle operation with trickle charge pump per high side

Integrated low RON, ultra-fast bootstrap diodes

Independent under voltage lockout for both high and low side

Integrated shoot-through protection with built-in dead time

Multi-function RFE pin (Enable, Fault, and automatic Fault clear)

Integrated short pulse / noise rejection input filter

Schmitt trigger inputs with hysteresis

3.3 V, 5 V input logic compatible, outputs in phase with inputs

Available in small footprint QFN32 lead, 5x5 mm package

2kV HBM ESD, RoHS compliant

Applications

General purpose three phase gate driver for N-Channel MOSFETs

Servo Drives in Robotics and Factory Automation

General Purpose Low Voltage Drives or inverters

e-Scooters, e-Bikes, and other e-Vehicles that do not require Automotive Qualification (LSEV)

Battery operated Small Home Appliances (SHA)

Commercial and Agricultural Drones

Professional and Consumer Service Robotics

Logistics Vehicles (eForklifts, Autonomous warehouse robotics)

Battery operated hand-held power tools

Gardening or Outdoor Power Equipment (OPE) Tools
