ADS7067IYBHR is a small, 16-bit, 8-channel, high-precision successive-approximation register (SAR) analog-to-digital converter (ADC). The ADS7067 has an integrated capless reference and a reference buffer that helps reduce the overall solution size by requiring fewer external components.

Product Features

Small solution size:

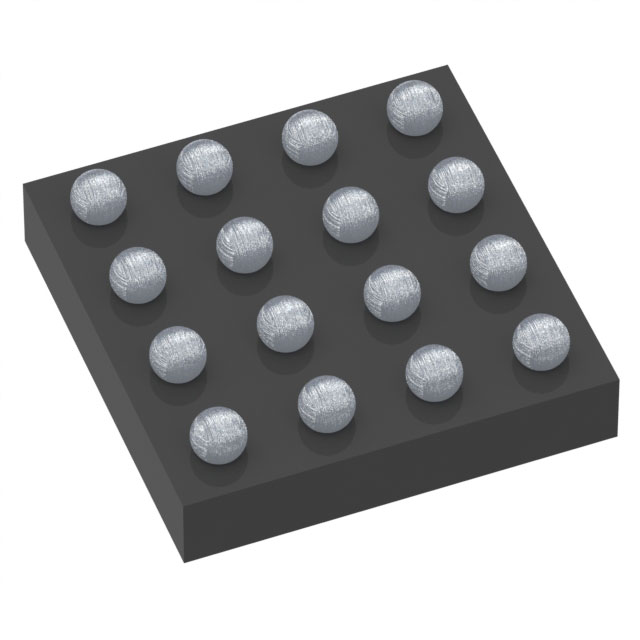

– 1.62mm × 1.62mm WCSP

– Space-saving, capless, 2.5V internal reference

8 channels configurable as any combination of: Up to 8 analog inputs, digital inputs, or digital outputs

Programmable averaging filters:

– Programmable sample size for averaging

– Averaging with internal conversions

– 20-bit resolution for average output

Low-leakage multiplexer with channel sequencer:

– Manual mode

– On-the-fly mode

– Auto-sequence mode

Excellent AC and DC performance:

– SNR: 90 dB, THD: –100 dB

– Improved SNR with programmable averaging filters

– INL: ±1 LSB, 16-bit no missing codes

– Internal calibration improves offset and drift

– High sample rate with no latency output: 800 kSPS

Wide operating range:

– ADC input range: 0 V to VREF and 2 × VREF

– Analog supply: 3 V to 5.5 V

– Digital supply: 1.65 V to 5.5 V

– Temperature range: –40°C to +125°C

Enhanced-SPI digital interface: High-speed, 60MHz SPI interface

Applications

Optical modules

Optical line cards

Multiparameter patient monitors
