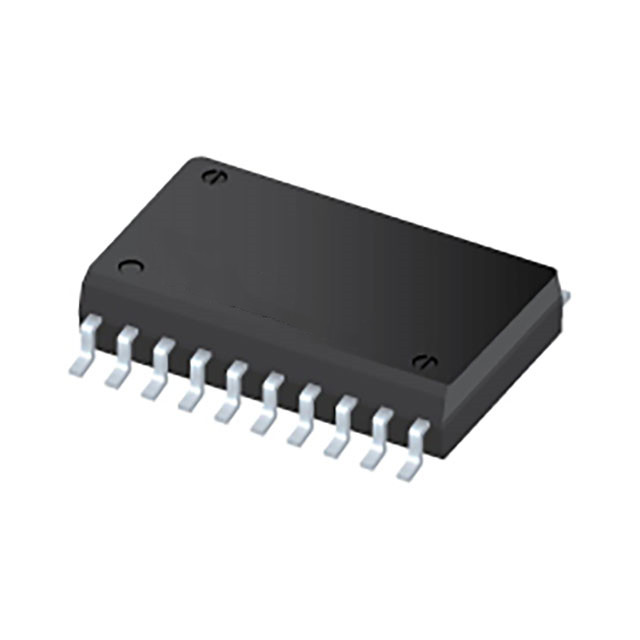

The ISOW7740DFMR device is an electrically isolated four-channel digital isolator with a low radiation integrated high efficiency power converter in a 20-pin SOIC package. The ISOW7740 offers up to 550mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolation designs.

Product attribute

Technology: capacitive coupling

Type: General

Isolated power supply: Yes

Number of channels: 4

Enter -Side 1/ side 2:4/0

Channel type: Unidirectional

Voltage - isolation: 5000Vrms

Common mode transient immunity (min) : 85kV/µs

Data rate: 100Mbps

Propagation delay tpLH/tpHL (maximum) : 15.7ns, 15.7ns

Pulse width distortion (Max) : 5ns

Rise/fall time (typical) : 2.5ns, 2.4ns

Voltage - power supply: 2.97V ~ 3.63V, 4.5V ~ 5.5V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 20-SOIC (0.295", 7.50mm wide)

Supplier device package: 20-SOIC

Basic product number: ISOW7740

Apply

• Factory automation

• Motor control

• Grid infrastructure

• Medical equipment

• Test and measurement
