The ISOW7721DFMR is a galvanically isolated dual-channel digital isolator with a low-emission integrated high-efficiency power converter. The integrated DC/DC converter provides up to 550mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolated designs. If additional power is required, multi-device chains are supported to increase the integrated power output to >1W by using two devices in the system.

Product Attributes

Technology: Capacitively coupled

Type: CAN, RS232, RS485, SPI

Isolated Power Supply: Yes

Number of Channels: 2

Inputs - Side 1/Side 2: 1/1

Channel Type: Unidirectional

Voltage - Isolated: 5000Vrms

Common Mode Transient Immunity (min): 85kV/µs

Data Rate: 100Mbps

Propagation Delay tpLH / tpHL (max): 15.7ns, 15.7ns

Pulse Width Distortion (max): 5ns

Rise / Fall Time (typical): 2.5ns, 2.4ns

Voltage - Supply: 2.97V ~ 3.63V, 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

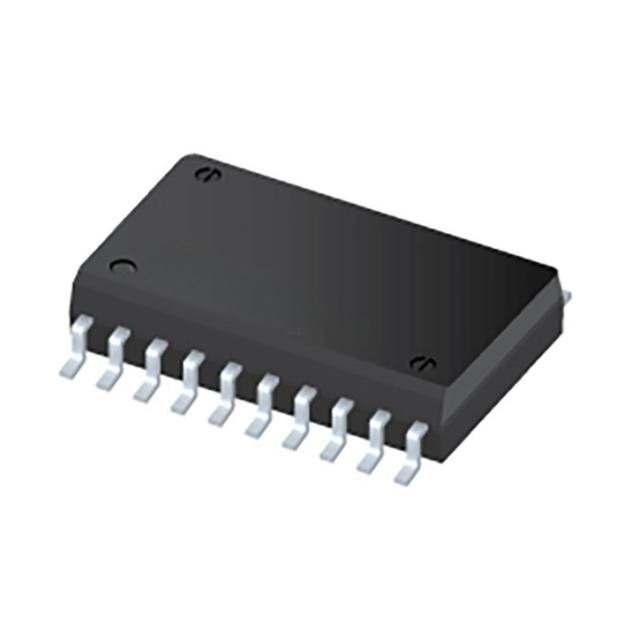

Package/Shell: 20-SOIC (0.295", 7.50mm Width)

Supplier Device Package: 20-SOIC

Applications

● Factory Automation

● Motor control

● Grid infrastructure

● Medical devices

● Test and Measurement
