The ISOW7741FQDFMRQ1 devices are galvanically isolated four-channel digital isolators with an integrated DC-DC converter that provides low power consumption, high efficiency, and low radiation The integrated DC-DC converter provides up to 550 mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolated designs.

Product Attributes

Technology: Capacitively Coupled

Type: General Purpose

Isolated Power: Yes

Number of Channels: 4

Input - Side 1/Side 2: 3/1

Channel Type: Unidirectional

Voltage - Isolated: 5000Vrms

Common Mode Transient Immunity (min): 85kV/µs

Data Rate: 100Mbps

Propagation Delay tpLH / tpHL (max): 15.7ns, 15.7ns

Pulse Width Distortion (max): 5ns

Rise/fall time (typical): 2.5ns, 2.4ns

Voltage - Supply: 2.97V ~ 3.63V, 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

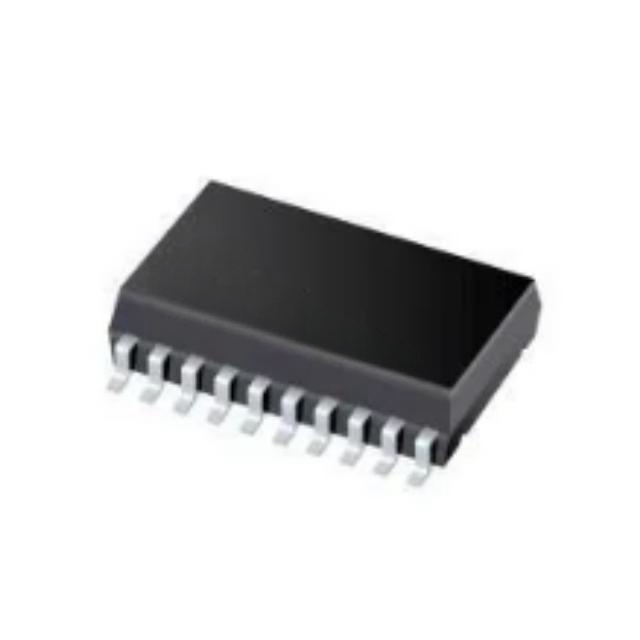

Package/Shell: 20-SOIC (0.295", 7.50mm Width)

Supplier Device Package: 20-SOIC

Applications

● Hybrid, electric and powertrain (EV/HEV) systems

● Battery Management Systems (BMS)

● On-board chargers (OBC)

● Traction inverters

● DC/DC converters
