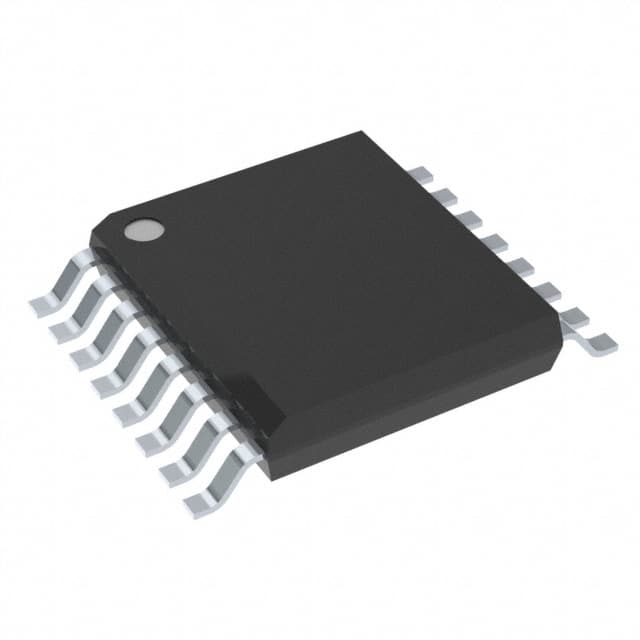

The ISO7761QDBQQ1 device is a high-performance six-channel digital isolator that offers UL 1577 compliant 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation rating. The device is also VDE, CSA, TUV and CQC certified.

Product specification

Technology: capacitive coupling

Type: General

Isolated power supply: None

Number of channels: 6

Enter - Side 1/ side 2:5/1

Channel type: Unidirectional

Voltage - isolation: 5000Vrms

Common mode transient immunity (min) : 85kV/µs

Data rate: 100Mbps

Propagation delay tpLH/tpHL (maximum) : 16ns, 16ns

Pulse width distortion (Max) : 4.9ns

Rise/fall time (typical) : 1.1ns, 1.4ns

Voltage - Power supply: 2.25V ~ 5.5V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 16-SSOP (0.154", 3.90mm wide)

Supplier device package: 16-SSOP

Basic product number: ISO7761
