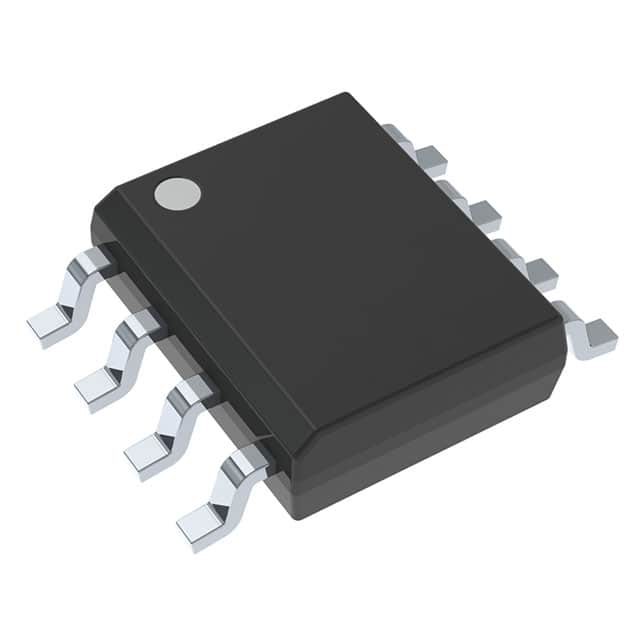

The ADT7311WTRZ device is a narrow-body 8-pin SOIC packaged high-precision digital temperature sensor. It has a built-in bandgap temperature reference source and a 16-bit ADC for temperature monitoring and digital conversion with a resolution of 0.0078°C. The default ADC resolution is set to 13 bits (0.0625°C). ADC resolution is in user programmable mode and can be changed via serial interface.

specification

Sensor type: Digital, local

Sensing temperature - Local: -40°C ~ 150°C

Sensing temperature - Remote: -

Output type: SPI

Voltage - Power supply: 2.7V ~ 5.5V

Resolution: 16 b

Features: Single trigger, programmable limit, programmable resolution, off mode

Accuracy - Max (Min) : ±0.4°C (±1°C)

Test conditions: -40°C ~ 105°C (-40°C ~ 150°C)

Operating temperature: -40°C ~ 150°C

Mounting type: Surface mount type

Package/housing: 8-SOIC (0.154", 3.90mm wide)

Supplier device package: 8-SOIC

Basic product number: ADT7311
