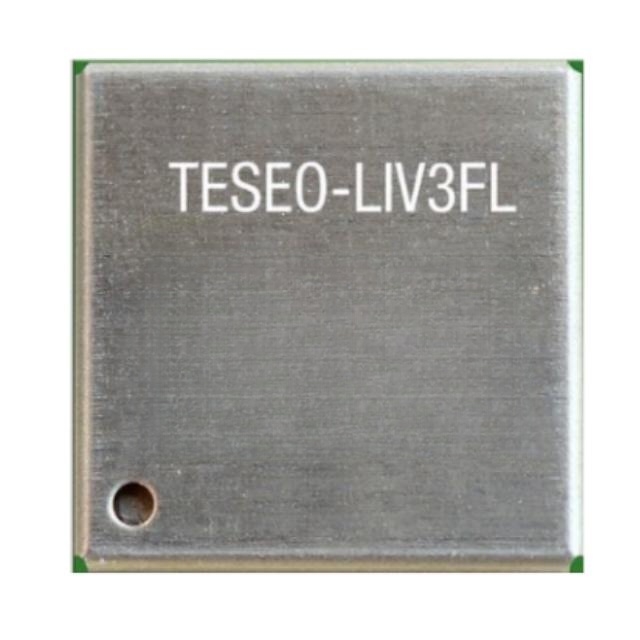

The TESEO-LIV3FL is an easy-to-use standalone Global Navigation Satellite System (GNSS) module. It embeds the Teseo III single-chip stand-alone positioning receiver IC and can operate simultaneously in multiple constellations (GPS/Galileo/Glonass/GNSS).The TESEO-LIV3FL has a size of only 9.7 x 10.1 mm but is extremely accurate due to the integration of a temperature-compensated crystal. Thanks to the integrated temperature-compensated crystal oscillator (TCXO) and the reduced time-to-first-fix (TTFF). Thanks to embedded flash memory.

Functions

● Synchronised multi-constellation

● -163 dBm tracking sensitivity

● 1.5 metre CEP positional accuracy

● 16 Mbit embedded flash memory for data logging and FW upgrades

● VCC/VBAT supply voltage range from 1.75 V to 4.2 V

● VCC_IO 1.8 V and 3.3 V

● Miniature LCC 18-pin package (9.7x10.1)

● Operating temperature (-40° to 85 °C)

● Free FW configuration

● Measured data (carrier phase)

● 8 μA standby current and 65 mW tracking power consumption
