Trade Name:RF Receiver
Brand:ADI
Particular Year:25+

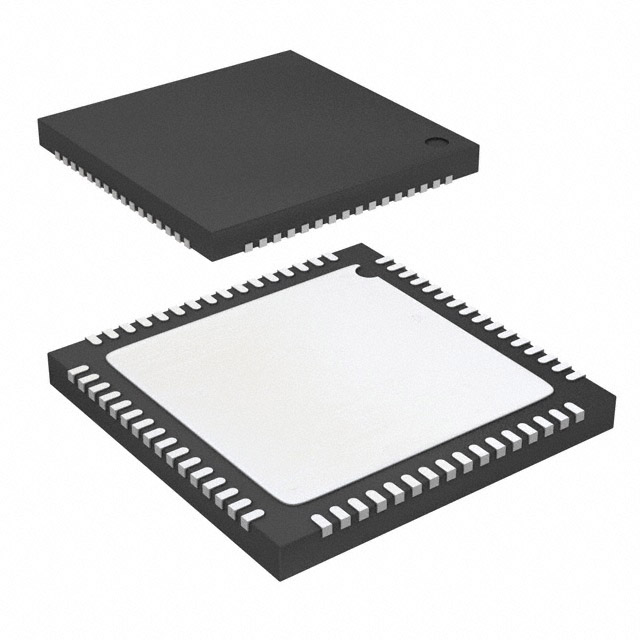

Package:LFCSP-64
Delivery Date:New and original
Stock: 2000pcs
The AD6674BCPZRL7-750 is a 385 MHz bandwidth mixed-signal intermediate frequency (IF) receiver. It is equipped with a dual-channel, 14-bit 750 MSPS analog-to-digital converter (ADC) and various digital signal algorithm modules, including four wideband DDCS, one NSR and VDR monitoring. The following are its core features:
JESD204B (Subclass 1) encodes serial digital output
In-band SFDR = 83 dBFS (750 MSPS at 340 MHz)
In-band SNR = 66.7 dBFS (750 MSPS at 340 MHz)
Total power consumption per channel at 750 MSPS: 1.4 W (default setting)
Noise density = -153 dBFS/Hz (750 MSPS)
It is powered by 1.25V, 2.5V and 3.3V DC power supplies
Flexible input range
AD6674-750 and AD6674-1000
1.46 V p-p to 1.94 V p-p (nominal value 1.70 V p-p)
AD6674-500
1.46 V p-p to 2.06 V p-p (nominal value 2.06 V p-p)
95 dB channel isolation/crosstalk
The amplitude detection position supports the realization of efficient automatic gain control (AGC)
The Noise shaping and requantizer (NSR) option supports the main receiver function
The variable dynamic range (VDR) option supports digital predistortion (DPD) functionality
Each channel integrates two wideband digital processors
12-bit numerical control oscillator (NCO), with up to 4 half-band filters cascaded in multiple stages
Differential clock input
Integer clock division values: 1, 2, 4 or 8
Energy-saving shutdown mode
Flexible JESD204B channel configuration
Small-signal perturbation
The AD6674BCPZRL7-750 features an on-chip buffer and sample-and-hold circuit, specifically designed for low power consumption, small size and ease of use. This product is designed to support communication applications and can achieve wideband analog signal sampling up to 2 GHz. The AD6674BCPZRL7-750 is optimized for wide input bandwidth, high sampling rate, excellent linearity and small package low power consumption.
Application scenarios
The AD6674BCPZRL7-750 is applicable to communication standards such as 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, as well as HFC digital reverse path receivers.
Model
Brand
Package
Quantity
Describe
ADI
LFCSP-64
2500
385 MHz bandwidth mixed-signal intermediate frequency (IF) receiver
ADI
CSPBGA-144
3000
RF Receiver - Quad Channel Intermediate Frequency (IF) Receiver, CSPBGA-144
