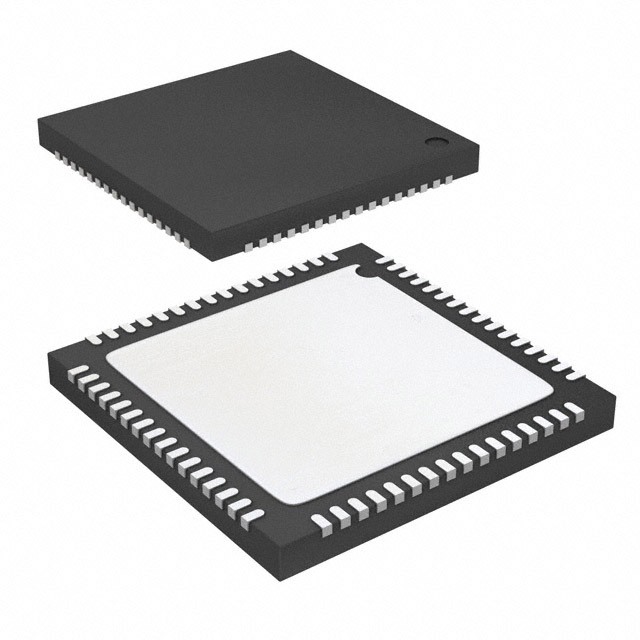

The AD6674BCPZRL7-500 is a 385 MHz bandwidth mixed-signal intermediate frequency (IF) receiver. It is equipped with a dual-channel, 14-bit 500 MSPS analog-to-digital converter (ADC) and various digital signal algorithm modules, including four wideband DDCS, one NSR and VDR monitoring. The AD6674BCPZRL7-500 features an on-chip buffer and sampling hold circuit, and is specifically designed for low power consumption, small size and ease of use. This product is designed to support communication applications and can achieve wideband analog signal sampling up to 2 GHz. The AD6674BCPZRL7-500 is optimized for wide input bandwidth, high sampling rate, excellent linearity and small package low power consumption.

Main features

JESD204B (Subclass 1) encodes serial digital output

In-band SFDR = 83 dBFS (750 MSPS at 340 MHz)

In-band SNR = 66.7 dBFS (750 MSPS at 340 MHz)

Total power consumption per channel at 750 MSPS: 1.4 W (default setting)

Noise density = -153 dBFS/Hz (750 MSPS)

It is powered by 1.25V, 2.5V and 3.3V DC power supplies

Flexible input range

AD6674-750 and AD6674-1000

1.46 V p-p to 1.94 V p-p (nominal value 1.70 V p-p)

AD6674-500

1.46 V p-p to 2.06 V p-p (nominal value 2.06 V p-p)

95 dB channel isolation/crosstalk

The amplitude detection position supports the realization of efficient automatic gain control (AGC)

The Noise shaping and requantizer (NSR) option supports the main receiver function

The variable dynamic range (VDR) option supports digital predistortion (DPD) functionality

Each channel integrates two wideband digital processors

12-bit numerical control oscillator (NCO), with up to 4 half-band filters cascaded in multiple stages

Differential clock input

Integer clock division values: 1, 2, 4 or 8

Energy-saving shutdown mode

Flexible JESD204B channel configuration

Small-signal perturbation

Typical applications

Diversity multi-band, multi-mode digital receivers 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A

Upstream receiving path of DOCSIS 3.0 CMTS

HFC digital reverse path receiver
