The UCC28C57HQDRQ1 current mode PWM controller provides a high performance solution to drive Si and SiC MOSFETs in a wide range of applications.

Product Attributes

Output Type: Transistor Driver

Function: Boost, Buck, Boost/Buck

Output Configuration: Positive

Topology: Boost, Buck, Flyback, Forward Converter, SEPIC

Number of Outputs: 1

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 28V

Frequency - Switching: 1MHz

Duty Cycle (Max): 100%

Synchronous Rectifier: No

Clock Synchronisation: Yes

Serial Interface: -

Control Features: Current Limit, No-Load Time Control, Enable, Frequency Control, Soft Start

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

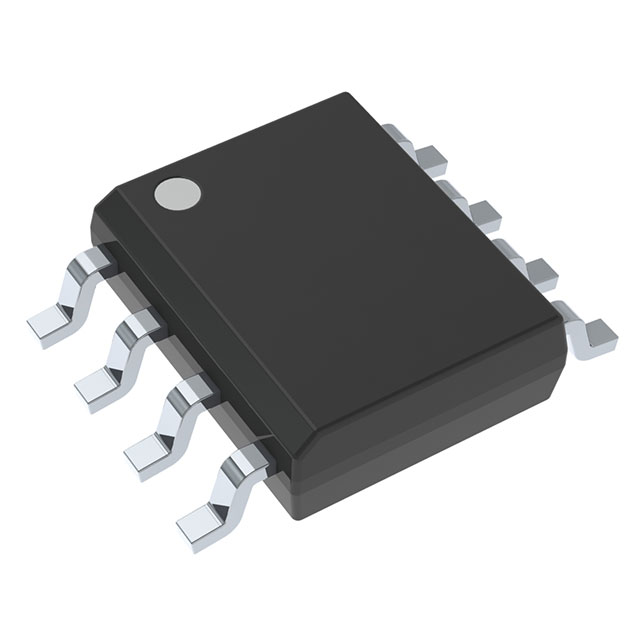

Package/Shell : 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package: 8-SOIC

Applications

Traction Inverter HV to LV Backup Supply

Isolated bias power supplies for OBC and DC/DC converters

High voltage isolated power supplies for HVAC compressors

Single-Ended DC Converters in AC and DC EV Charging Equipment
