Service Telephone:86-755-83294757
Trade Name:DC DC Switch Controllers
Brand:ADI
Particular Year:25+
Package:TSSOP-20
Delivery Date:New and Original
Stock: 5500pcs

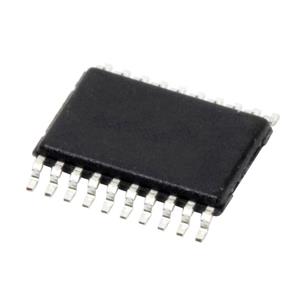

LT8714IFE (DC-DC Switching Controller) with Seamless Four-Quadrant Operation and Bipolar Output Synchronous Controller
The LT8714IFE is a synchronous PWM DC/DC controller specifically designed for four-quadrant output converters. By leveraging its ability to supply and absorb output current, the output voltage can cleanly transition through 0V.
The switching frequency range of the LT8714IFE can be set between 100kHz and 750kHz using a resistor connected between the RT pin and GND. Additionally, a SYNC pin is provided to allow the device to be synchronised to an external clock.
Product Details:
Model: LT8714IFE
Product Type: Switching Controller
Topology: Flyback
Number of Outputs: 1 Output
Switching Frequency: 750 kHz
Duty Cycle - Maximum: 80%
Output Voltage: 20 V
Output Current: 5 A
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Mounting Style: SMD/SMT
Package/Case: TSSOP-20
Operating Supply Current: 4 mA
LT8714IFE Applications:
Four-quadrant power supply
Bidirectional current source
High-power, low-frequency signal amplification
Test and measurement
Electronic window tinting
