The UCC28C50QDRQ1 current-mode PWM controller provides a high-performance solution for driving Si and SiC MOSFETs in a variety of applications.

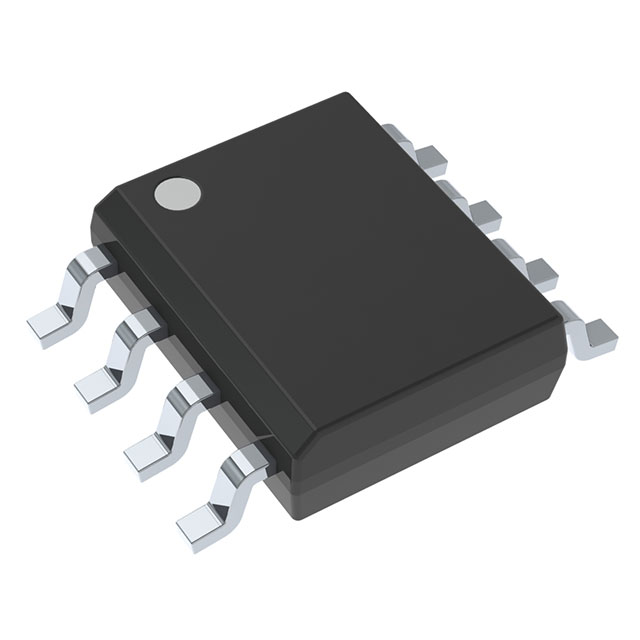

The UCC28C50QDRQ1 current-mode PWM controller is available in an 8-pin SOIC (D) package.

Features

- Undervoltage lockout option for Si and SiC MOSFET applications

- 30V VDD absolute maximum voltage

- 1MHz maximum fixed frequency operation

- 50μA start-up current, 75μA maximum

- Low operating current: 1.3mA (fOSC = 52kHz)

- High Operating TJ: 150°C (max)

- 35ns Fast cycle-by-cycle overcurrent limit

- Peak drive current of ±1A

- Rail-to-rail output:

- 25ns rise time

- 20ns fall time

- 2.5V error amplifier reference with ±1% accuracy

- Pin-to-pin compatible direct replacement for UCC28C4x-Q1

- Provides Functional Safety

- Documentation to aid in the design of functionally safe systems

- Features the following AEC-Q100-compliant features

- Device Temperature Class 1: -40°C to 125°C

- Device HBM Classification Level 2: ±2kV

- Device CDM Classification Level C4B: 750 V

Applications

- Traction inverter HV to LV backup power supply

- Isolated bias power supplies for OBCs and DC/DC converters

- Isolated high-voltage power supplies for HVAC compressors

- Single-Ended DC Converters in AC and DC EV Charging Equipment
