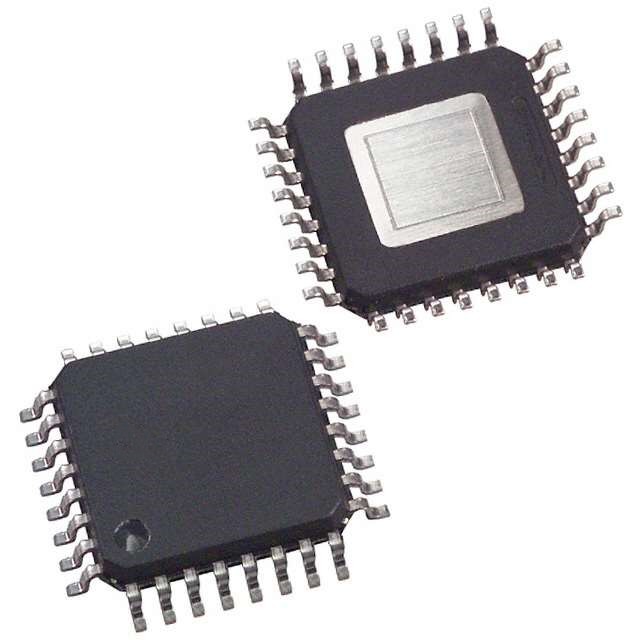

The LP8860LQVFPRQ1 is an automotive high efficiency LED driver with a boost controller. The device features 4 high precision current traps that can be controlled via PWM input signals, SPI and/or I2C host.

Features

- Automotive Compliance

- The following features are compliant with AEC-Q100:

- Device temperature class 1: -40°C to +125°C ambient operating temperature

- Input voltage operating range: 3V to 48V

- Four high-precision current traps

- Current matching of 0.5% (typical)

- LED string current up to 150mA/channel

- External PWM brightness control with dimming ratio greater than 13000:1

- 16-bit dimming control via SPI or I2C

- Supports display mode (global dimming) and cluster mode (independent dimming)

- Hybrid PWM and current dimming for higher LED drive light efficiency

- Synchronisation to LED PWM frequency

- Boost controller with programmable switching frequency from 100kHz to 2.2Mhz and spread spectrum option for EMI reduction

- Boost Sync Inputs

- Powerline field effect transistor (FET) control for inrush current protection and standby power savings

- Automatic LED current reduction with external temperature sensor

- Extensive fault diagnostics

Applications

• Provides backlighting for the following applications:

- Automotive infotainment systems

- Automotive infotainment systems

- Automotive Infotainment Systems Automotive Dashboards Intelligent Car Mirrors

- Head-Up Display (HUD)

- Central Information Display (CID)

- Audio and Video Navigation (AVN)
