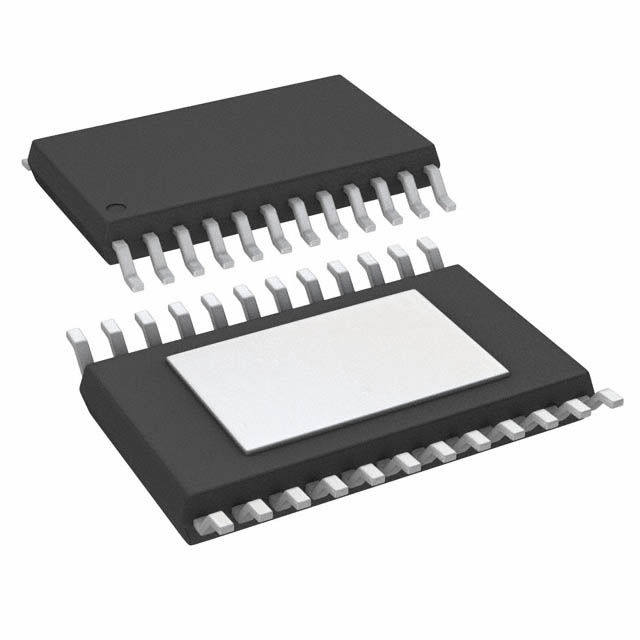

The TPS92663AQPWPRQ1 LED Matrix Manager device enables a fully dynamic adaptive lighting solution by providing individual pixel-level LED control.

The device's 3 series-integrated switches each have 2 sub-strings to bypass individual LEDs, with each sub-string allowing the device to accept a single or multiple current sources. It is also possible to connect 2 switches in parallel to bypass high current LEDs.

Features

- Compliant with AEC-Q100 for automotive applications

- Device temperature class 1: -40°C to 125°C TA

- Device HBM Classification: H1C

- Device CDM Classification: C5

- Input voltage range: 4.5 V to 60 V

- 6 integrated bypass switches

- 3 series switches with 2 sub-strings each

- 20V max. across switching voltage

- 62V max. switch-to-ground voltage

- Multi-point UART communication interface

- Up to 16 addressable devices

- Integrates TPS92662A-Q1 on the same bus

- CAN physical layer compatible

- Minimum number of wires in the cable harness

- 8-bit ADC with 2 multiplexer inputs

- Crystal oscillator driver

- Programmable 10-bit PWM dimming

- Individual phase shift and pulse width

- Inter-device synchronisation

- LED open/short detection and protection

Applications

- Automotive headlighting systems

- High Brightness LED Matrix Systems

- ADB or glare-free high beam

- Continuous turning and animated daytime running lights
