The INA300AQDGSRQ1 is a high common-mode, current-sense comparator that measures overvoltage by measuring the voltage developed across a current-sense or shunt resistor. This device measures this differential voltage signal over a common mode voltage range of 0V to 36V, independent of the supply voltage. The INA300-Q1 device has an adjustable threshold range that is set by a single external limit setting resistor. An optional hysteresis function adjusts the operation of the comparator to accommodate a wide input signal range of 0mV to 250mV.

The open-drain alarm output on the device can be configured in either transparent mode (output state remains the same as the input state) or latching mode (clears the alarm output when clearing the latch). The device response time setting is selectable, and an overcurrent alarm can be issued quickly within 10µs.

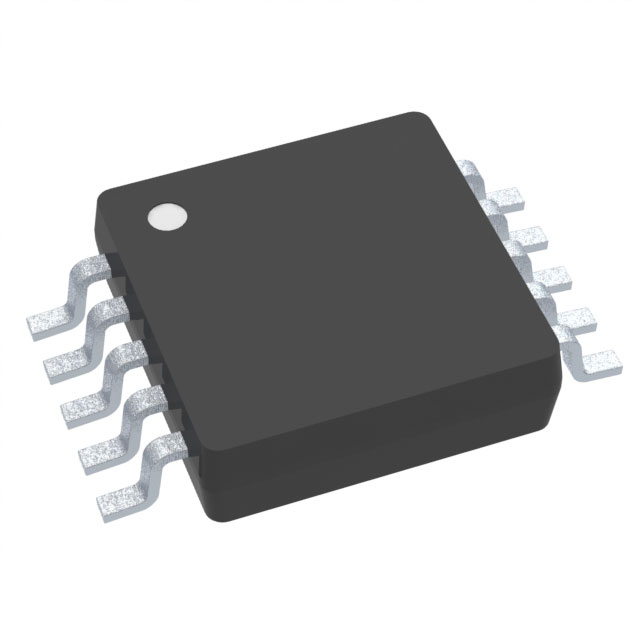

The INA300AQDGSRQ1 devices operate from a single 2.7V-5.5V supply with a maximum supply current consumption of 135µA. The INA300-Q1 devices are rated over the -40°C to +125°C operating temperature range and are available in a VSSOP-10 package.

Features

- Automotive Compliance

- The following features are compliant with AEC-Q100:

- Device Temperature Class 1: -40°C to +125°C ambient operating temperature range

- Device HBM ESD Classification 2

- Device CDM ESD Classification Level C6

- Providing Functional Safety

- Documentation to aid in the design of functionally safe systems

- Wide common mode range: 0V to 36V

- Optional response times:

- 10µs, 50µs, 100µs

- Programmable thresholds:

- Adjustable with a single resistor

- Programmable from 0mV to 250mV

- Accuracy:

- Offset voltage: ±500µV (max)

- Offset drift: 0.5μV/°C (max)

- Optional hysteresis:

- 2mV, 4mV, 8mV

- Active quiescent current: 135μA (max)

- Optional Disabled Mode

- Disabled quiescent current: 3.5μA (max)

- Disabled input bias current: 500nA (max)

- Open-drain output when latch mode is available

Applications

- Body control modules

- Motor control

- Valve control

- Central control modules
