Trade Name:INA303A2QPWRQ1
Data Manual:INA303A2QPWRQ1.pdf
Brand:TI
Particular Year:23+

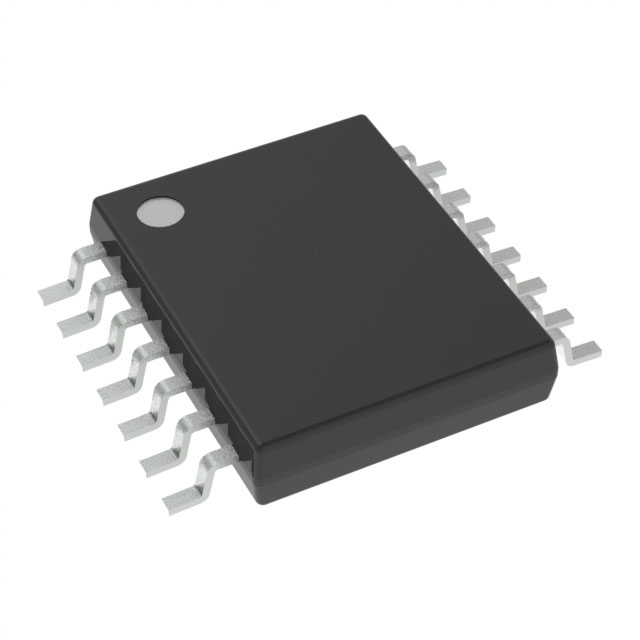

Package:TSSOP-14
Delivery Date:New and Original
Stock: 1100pcs
INA303A2QPWRQ1 Overcurrent Protection The high-speed precision current sense amplifier features two high-speed integrated comparators to detect over-range current conditions.
The open-drain alarm outputs can be configured to operate in either transparent mode (where the output state remains the same as the input state) or latched mode (where the alarm output clears on latched reset). The alarm response time for Comparator 1 is less than 1µs, while the alarm response time for Comparator 2 is set by an external capacitor and ranges from 2µs to 10s.
The INA303A2QPWRQ1 is available in a 14-pin TSSOP package with a wide rated operating temperature range of -40°C to +125°C. The INA30x-Q1 devices are qualified to AEC-Q100 for automotive applications.
Attributes
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 440 kHz
Vcm - Common mode voltage: 12 V
CMRR - Common Mode Rejection Ratio: 120 dB
Ib - Input bias current: 115 uA
Vos - Input bias voltage: 5 uV
Supply voltage - max: 5.5 V
Supply voltage - min: 2.7 V
Operating supply current: 850 uA
Gain Error: 0.1 %
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Mounting style: SMD/SMT
Package / Case: TSSOP-14
Qualification: AEC-Q100
Applications
System fault detection
Motor control and protection
Pump control and protection
DC/DC converters
Body Control Modules
Model
Brand
Package
Quantity
Describe
TI
VQFN-14
2000
110V 35A integrated-shunt high-precision current-sense amplifier with enhanced PWM rejection
TI
VQFN-16
60000
36V, 16-bit, I²C output current, voltage and power monitor with alarm function
ADI
MSOP-8
3000
A 1.8MHz high-bandwidth current-aware amplifier with PWM suppression and 10V/V gain
ADI
MSOP-10
2000
-2 V to 70 V wide input voltage range, 2.2 MHz high bandwidth, current sense amplifier with PWM rejection and 20 V/V gain
ADI
MSOP-10
2000
-2V to 70V Wide Input Voltage Range, 2.7MHz High Bandwidth, Current Sense Amplifier with PWM Suppression and 50 V/V Gain
Maxim
SOT23-5
23000
Industry's first SOT23 high-side current-sense amplifier with buffered outputs
