The INA302A1QPWRQ1 devices have a high common-mode, bi-directional, current-sense amplifier and two high-speed comparators for detecting out-of-range current conditions.The INA302-Q1 comparator is configured to detect and respond to overcurrent conditions.The INA303 -Q1 comparator is configured to respond to overcurrent and undercurrent conditions in a windowed configuration. These devices have adjustable limit threshold ranges for each comparator setting using external limit setting resistors. These current shunt monitors measure differential voltage signals over a common mode voltage range of -0.1V to +36V independent of the power supply. In addition, these devices will withstand common mode voltages up to 40V.

Product Attributes

Function: Current Sense

Sensing Method: High/Low Side

Voltage - Input: 0V ~ 36V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

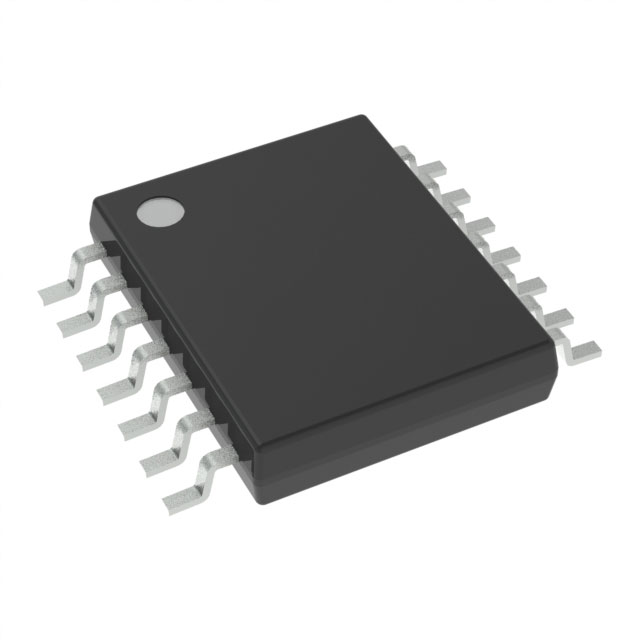

Package/Shell: 14-TSSOP (0.173", 4.40mm wide)

Supplier Device Package: 14-TSSOP

Base Product Number: INA302

Applications

- System fault detection

- Motor control and protection

- Pump control and protection

- DC/DC converters

- Body Control Modules
